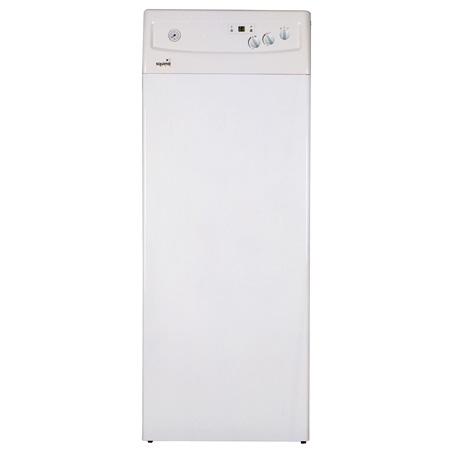

Floor Standing Gas Boiler
Item No.: | ST32-D2 |
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--

Online Showroom:
57 Products
Features & Benifits
* Built in 120 storage type heat exchanger ensures hot water supply for CH and DHW simultaneously
* Fast water heat up, up to 120L of water could be heated in 6 mins.
* Stable water temperature
* 2 spare pumps guarantee demand from different floor satisfied
* Especially good for big house and villa
* 18 protective functions ensure maximum reliability
* Floor heating mode with 60℃ temp limit protection
* Energy saving and comfort modes available for different needs.
* Magnetic filtering devices ensure normal operation in bad quality area.
Technical Data
* Built in 120 storage type heat exchanger ensures hot water supply for CH and DHW simultaneously
* Fast water heat up, up to 120L of water could be heated in 6 mins.
* Stable water temperature
* 2 spare pumps guarantee demand from different floor satisfied
* Especially good for big house and villa
* 18 protective functions ensure maximum reliability
* Floor heating mode with 60℃ temp limit protection
* Energy saving and comfort modes available for different needs.
* Magnetic filtering devices ensure normal operation in bad quality area.
Technical Data
Model | ST32-D2 | Unit |
Gas Type | NG, LPG, Town Gas | |
Dimension(L*H*W) | 1600 X 625 X 630 | mm |
C.H. System | ||
Nominal heat input | 35 | KW |
Nominal heat output | 32 | KW |
Heat Efficiency | 91.4 | % |
CH System Working Pressure | 0.05~0.3 | Mpa |
Max. Heating Temperature | 90 | ℃ |
Adjustable CH flow Temp.range | 40~85(Floor heating 35~60) | ℃ |
Nominal Electric Power | 145 | W |
Power | ~120V/60Hz | |
Protection Class | IPX4D | |
Expansion Vessel Volume | 12 | L |
Expansion Vessel Pre-charge Pressure | 0.1 | Mpa |
Heating Area(For reference only) | 150~350 | M2 |
Applicable Water Tap Number | 1 | |
NWT(boiler only) | 150 | kgs |
DHW System | ||
Max. Working Pressure | 0.6 | Mpa |
Min. Working Pressure | 0.03 | Mpa |
Continuous DHW Production △T=25℃ | 18 | kg/min |
Adjustable DHW flow Temp.range (±3℃) | 35~60 | ℃ |
Min DHW flow | 2.5 | kg/min |
DHW limited flow rate | 14 | kg/min |
DHW storage tank capacity | 120 | L |
Gas Pressure | ||
Natural Gas | 2000 | Pa |
LPG | 2800 | Pa |
Connection | ||
CH water outlet | 3/4" | |
DHW inlet | 3/4" | |
DHW outlet | 1/2" | |
Cold water inlet | 1/2" | |
Gas inlet | 3/4" | |
Pump delivery height | 6 | m |
