Fingerprint Reader
| Item No.: | SF650 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213
Online Showroom:
84 Products
Web base enabled fingerprint reader
Introduction:

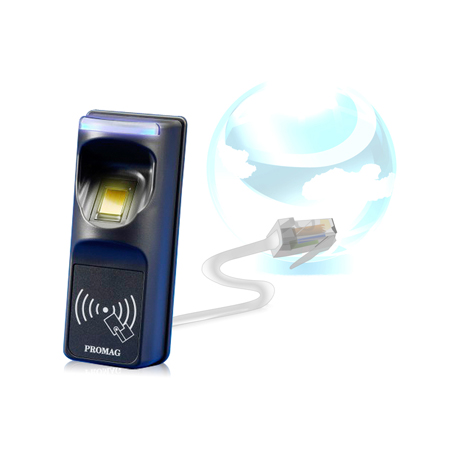

SmaFinger 650 is a biometric fingerprint reader that identifies users by fingerprints as well as ID cards. It also comes with a fingerprint + card option that can store digitized fingerprints on the card instead of system database. While having all the features and functions of other fingerprint readers sold in the market, what makes SF650 stand out is its fast response fingerprint reading feature. You might have experienced readers that are slow to read correctly placed fingers or failing to read instances of angular placement but thanks to Advanced Minutiae Based Algorithm (AMBA) and GIGA-TMS exclusive engineering, SF650 is the fastest recognizing fingerprint reader in its class and its quick response time has impressed our satisfied customers – both system integrators and end users.
SF650 has the standard TCP/IP interface and its Web Management Discover software is designed for single and multiple reader configuration installed anywhere in the world. All said, seeing is believing. Please contact our sales representatives and ask for details of the lightning fast SmaFinger 650 reader and experience it for yourself.
Features:
1.TCP/IP & Network enabled
2.4 in 1 interfaces: ABA TK2, Wiegand, RS232 and RS485
3.Online enrollment
4.Multi-color LED indication
5.Supports relay control
6.Multi-user card design for ease of use with additional users
Specification:
Introduction:
SmaFinger 650 is a biometric fingerprint reader that identifies users by fingerprints as well as ID cards. It also comes with a fingerprint + card option that can store digitized fingerprints on the card instead of system database. While having all the features and functions of other fingerprint readers sold in the market, what makes SF650 stand out is its fast response fingerprint reading feature. You might have experienced readers that are slow to read correctly placed fingers or failing to read instances of angular placement but thanks to Advanced Minutiae Based Algorithm (AMBA) and GIGA-TMS exclusive engineering, SF650 is the fastest recognizing fingerprint reader in its class and its quick response time has impressed our satisfied customers – both system integrators and end users.
SF650 has the standard TCP/IP interface and its Web Management Discover software is designed for single and multiple reader configuration installed anywhere in the world. All said, seeing is believing. Please contact our sales representatives and ask for details of the lightning fast SmaFinger 650 reader and experience it for yourself.
Features:
1.TCP/IP & Network enabled
2.4 in 1 interfaces: ABA TK2, Wiegand, RS232 and RS485
3.Online enrollment
4.Multi-color LED indication
5.Supports relay control
6.Multi-user card design for ease of use with additional users
Specification:
| Standard communication | TCP/IP(10/100 base), RS232, RS485, Wiegand, ABATK2 |
| RF characteristic | 13.56MHz ISO14443A |
| Voltage | Operating DC9-12V |
| Power consumption | Max 200mA@DC12V |
| Reading distance | Up to 5cm ( Mifare 1K/4K) |
| Dimension | 130L x 54W x 43H |
| Internet protocol | TCP, UDP, DHCP client, SNTP, UPnP, Locator |
| Inside server | Web server, GNetplus, NET |
| Supported browser | IE, Safari, Firefox, Chrome |
Indicator | LED 3 colors |
| MIfare Application directory | Configurable MAD1, MAD2 |
| Fingerprint | Capacitive, Optical type |
| Enrollment | Card only, Fingerprint only, Card + Fingerprint |
| Template capacity | 1900 ( Fingerprint) |
| Resolution | 508dpi ( fingerprint sensor) |
