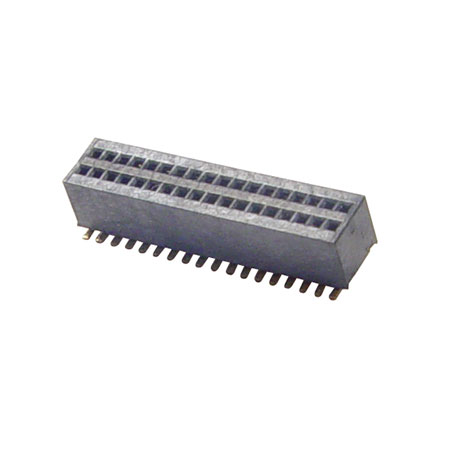

0.8 mm Female Header

Item No.:

FHNB-08MT2-XXXX - 0.8mm

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : FEMALE HEADER CONNECTOR/ FH - Pitch 0.8mm Female Header
Solder Type : SMT
Current Rating : 0.75A
Insulator Resistance : 1,000MΩ minimum
Contact Resistance : 20 MΩ maximum
Dielectric Withstanding Voltage : 250V AC/minute
Operating Temperatures : -40 to +105°C
Contact Material : Phosphor bronze
Insulator Material : High-temperature thermoplastic and glass fiber UL94V-0
Color : Black
Finish : Gold, Tin or duplex-plated
Standard : Gold flash all over
Duplex Plating : Gold-plated on contact area, Tin on solder area
Row of Plastic : Dual Row
0.75A Current Rating and Plastic Height of 3.1mm
Number of Contacts : 6~100 PINS
Safety Certification : ISO9001, ISO14000
Rohs Compliance
Material : PA6T, PA9T, LCP, PBT, PA46
Packaging Details : Plastic tray at first then put into carton box, but accept any special requirements.
We offer ODM and OEM services
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with more 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with West Europe, the North United States, Japan, South Korea, Middle-East and other international brands connectors.
