Torque Multiplier Tool
Item No.: | M-M48-15-T3000 |
Supplier Details
Country: Taiwan
City: New Taipei City 242018
Address: 3F., No. 212, Sec. 3, Zhonghua Rd., Xinzhuang Dist.
TEL: +886-2-85219935
Fax: +886-2-85219957
Online Showroom:
100 Products

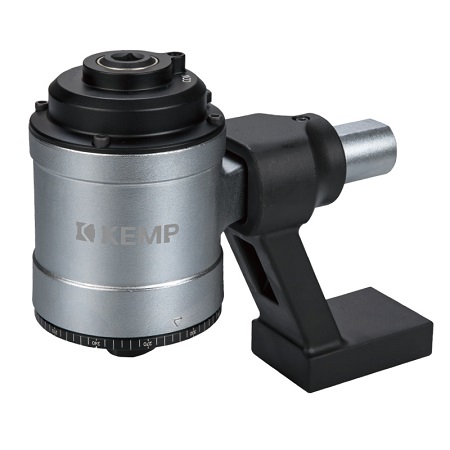

3000Nm Torque Multiplier
The KEMP 3000Nm Torque Multiplier is equipped with a dual planetary gear set, and the planetary gear mechanism improves transmission efficiency and load capacity.
The planetary gear drives all run on needle bearings to improve the accuracy of operation. With a safety device, the anti-backlash mechanism for safety concern and comfortable operation.
Max. Rated Input:200Nm(Ratio 15.5:1)
Max. Rated Output:3000Nm(Ratio 15.5:1)
For more information, please go to KEMP official website or contact KEMP
- Torque Range:0-3000 Nm
- Ratio:15.5:1
- Input Square:1/2 inch
- Output Square:1 inch
- Tolerance of torque ±6%
- Apply with wrench.
- Dual planetary gear mechanism.
- Origin:Taiwan
The KEMP 3000Nm Torque Multiplier is equipped with a dual planetary gear set, and the planetary gear mechanism improves transmission efficiency and load capacity.
The planetary gear drives all run on needle bearings to improve the accuracy of operation. With a safety device, the anti-backlash mechanism for safety concern and comfortable operation.
Max. Rated Input:200Nm(Ratio 15.5:1)
Max. Rated Output:3000Nm(Ratio 15.5:1)
For more information, please go to KEMP official website or contact KEMP
