Express Time Recorder

Introduction:

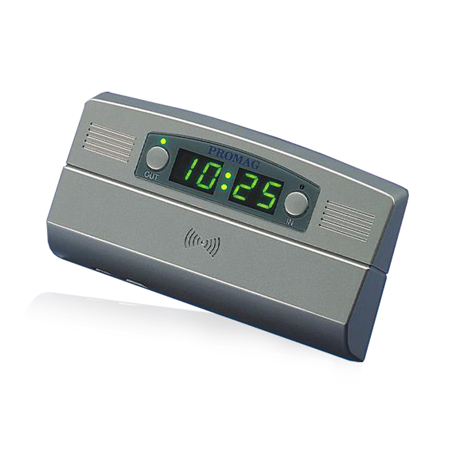

Simple to setup and operate, this Time and Attendance Terminal provides all the basic Time Recorder functionality in an attractive and cost-efficient package. Extremely versatile, the TR510 Terminal can be used as either a wall-mount or as a desktop device. An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.

Features:
☆Built-in self-test for quick hardware check-ups
☆Wall-mount or desktop operation
☆Built-in ring relay for external ring (bell) control
·Daily bell schedule of up to 32 different entries
·Bright, high-contrast LED display
·Built-in Magnetic Card, RFID, Mifare or Barcode reader
·Approximately 8200 records storage capacity
·Dual RS232 and RS485 interface for single- or multi-terminal communications
·Convenient Machine Number setup feature using IN and OUT buttons simplifies multi-terminal installation process
·Firmware management Mode (FMM) for easy internal firmware upgrades
※ Specification is subject to change without notice.

Specifications:

Display	4 x 7-segment LED
Card Type	Magnetic Card Reader: ISO TK 2 RFID Card Reader: 125KHz, ASK Barcode Card Reader: Code 39 Mifare: ISO 14443A
Database Capacity	Approximately 8200 records
Interface	Dual RS232 + RS485
Bell table	Up to 32 entries
Bell relay	Max 1A, 12V
Mounting	Wall-mount or desktop
Power Supply	DC 9V, 500mA
Operating Temperature	0 ~ 55° C
Operating Rel. Humidity	10 ~ 90%
Dimensions	170 (L) x 99 (W) x 48 (D) mm

Ordering information:
·TR510M – Magnetic Card Reader version
·TR510R – RFID Card Reader version w/125Khz
·TR510B – Barcode Card Reader version (visible red)
·TR510F – Barcode Card Reader version (infrared)
·TR510R-MF – Mifare Card version w/ 13.56Mhz
Also available for Felica and HID version
