Epoxy Varnish For Motor Winding
| Item No.: | Sterling 77X-010 |
Supplier Details
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom:
103 Products
Product Description
Sterling® 77X-010 is a clear, solvent-borne, airdrying impregnating resin.
Areas of Application

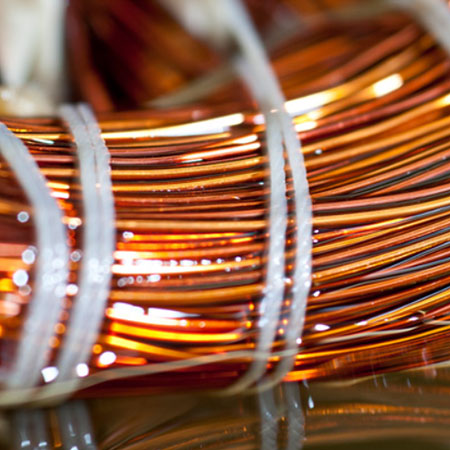

Impregnation of stator and transformers windings Protective coating for printed circuit boards, resistors and other components
Features and Benefits
Fast drying
Excellent chemical and moisture resistance
UL listed Class 130 through Class 180
Application Methods
Dip-and-Bake
Spray
Curing Schedule
Sterling® 77X-010 will air dry at 25°C / 77°F in 40 - 60% relative humidity to a tack-free surface in 20 - 30 minutes. Drying can be accelerated by exposure to 125 - 135°F / 257°F - 275°F for 2 - 3 minutes after an initial flash-off of one minute.
Impregnated windings must allow a minimum of three days at room temperature for evaporation of solvent and penetration of oxygen to achieve best properties.
Transportation / Storage
Store below 25°C / 77°F in a dry controlled environment out of direct sunlight. This material should be suitable for use stored under these conditions in the original sealed containers for twelve (12) months from the date of shipment.
Health / Safety
Refer to the Material Safety Data Sheet.
MORE
Sterling® 77X-010 is a clear, solvent-borne, airdrying impregnating resin.
Areas of Application
Impregnation of stator and transformers windings Protective coating for printed circuit boards, resistors and other components
Features and Benefits
Fast drying
Excellent chemical and moisture resistance
UL listed Class 130 through Class 180
Application Methods
Dip-and-Bake
Spray
Curing Schedule
Sterling® 77X-010 will air dry at 25°C / 77°F in 40 - 60% relative humidity to a tack-free surface in 20 - 30 minutes. Drying can be accelerated by exposure to 125 - 135°F / 257°F - 275°F for 2 - 3 minutes after an initial flash-off of one minute.
Impregnated windings must allow a minimum of three days at room temperature for evaporation of solvent and penetration of oxygen to achieve best properties.
Transportation / Storage
Store below 25°C / 77°F in a dry controlled environment out of direct sunlight. This material should be suitable for use stored under these conditions in the original sealed containers for twelve (12) months from the date of shipment.
Health / Safety
Refer to the Material Safety Data Sheet.
MORE
