End Mill - 4-5

End Mill

Item No.: 4-5
Supplier Details
Country: Taiwan
City: Taiwan
Address: No.95, Zhongzheng 2nd St., Yongkang Dist., Tainan City
TEL: +886-6-2426816
Fax: +886-6-2423818
Online Showroom: 59 Products

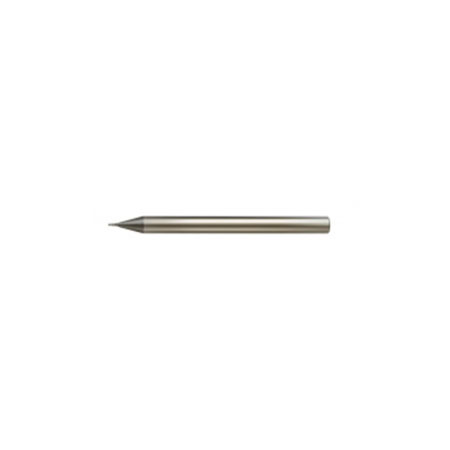

  1. Item: Carbide End Mill / Ball Nose– Miniature Square Type
  2. Tungsten Carbide Grain size: 0.3 - 0.6μm
  3. Co(%): 8 - 11.5%
  4. Helix Angle: 35°
  5. Flute Diameter: 0.2~0.9 mm (for End Mill)
  6. R Angle: 0.1~0.45R (for Ball Nose)
  7. Shank Diameter: 4.0 mm
  8. Full Length: 50 mm
  9. Coating: not-plated or AlTiN
  10. Workpiece materials: plastics, aluminum alloy, iron, copper alloy, cast iron, alloy steel, stainless steel, tool steel. (HRC45, HRC50, HRC55)
  11. Application: complete plunge milling, side milling, and slot milling /mould and R-groove cutting in one process to effectively speed up production
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

End Mill

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
