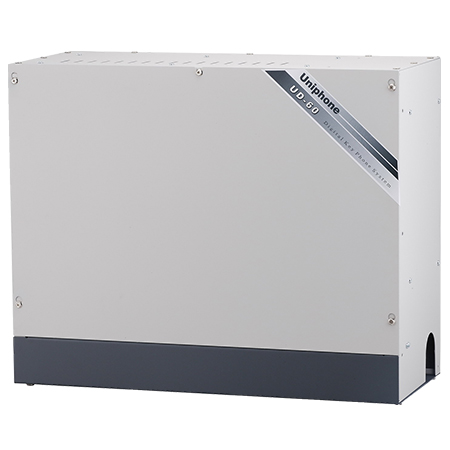

EMERGENCY CALL SYSTEM
| Item No.: | UD-60CS |
Supplier Details
Country: Taiwan
City: Taiwan
Address: NO.25，chugong 3rd ln.,Renwu Dist,Kaohsiung city 814,Taiwan
TEL: +886-7-3742024
Fax: +886-7-3744659
Online Showroom:
34 Products
Specification:
Features:
■ Star Connection
It’s different from the Parallel connection. Malfunction will be only happened in the faulty station..
■ One-Way communication
Call signal sending only. The patient can’t talk with patient through patient unit.
■ Distinguish Warning Tone
The different warning tone assign for nurse call, emergency call, staff assist and Code Blue.
■ 4- level of priority, company with 3-color LED display and 4-color corridor light to comply with JCI system
Top priority – Code blue; 2nd priority – Emergency/bathroom call; 3rd priority – Staff Assist; 4th priority – Call for nurse
|
Capacity |
60 ports |
|
Power Source |
AC 110V〜240V, 50/60Hz±10% |
|
Max. Power Consumption (Exclud. Station) |
7W |
|
Max. DC Output Power |
50W |
|
External Back-up Battery |
24V/4 – 50AH |
|
Max. Battery Charge Current |
27. 6V/0.5A |
|
Communication |
1-way communication |
|
Wiring |
2 wires Connection |
|
Dimension (cm) |
32 x 38.5 x 10.7 |
|
Net Weight (kg) |
2.2 |
|
Ambient Temperature |
5 – 45℃ |
|
Relative Humidity |
20 – 80 %RH |
■ Star Connection
It’s different from the Parallel connection. Malfunction will be only happened in the faulty station..
■ One-Way communication
Call signal sending only. The patient can’t talk with patient through patient unit.
■ Distinguish Warning Tone
The different warning tone assign for nurse call, emergency call, staff assist and Code Blue.
■ 4- level of priority, company with 3-color LED display and 4-color corridor light to comply with JCI system
Top priority – Code blue; 2nd priority – Emergency/bathroom call; 3rd priority – Staff Assist; 4th priority – Call for nurse
