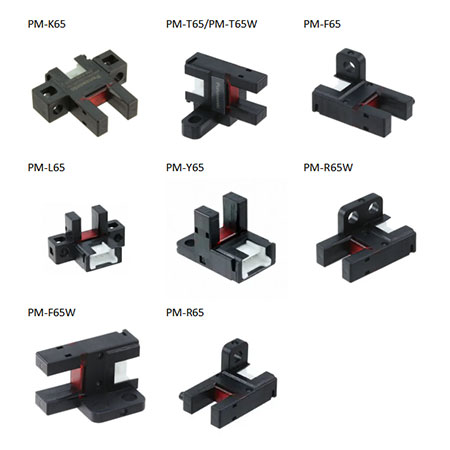

PM-K65 / PM-K65-P
PM-T65 / PM-T65-P / PM-T65W / PM-T65W-P
PM-L65 / PM-L65-P
PM-Y65 / PM-Y65-P
PM-F65 / PM-F65-P / PM-F65W / PM-F65W-P
PM-R65 / PM-R65-P / PM-R65W / PM-R65W-P

PM-K65 replace PM-K54 / PM-K65-P replace PM-K54-P
PM-T65 replace PM-T54 / PM-T65-P replace PM-T54-P / PM-T65W replace PM-T54W / PM-T65W-P replace PM-T54W-P
PM-L65 replace PM-L54 / PM-L65-P replace PM-L54-P
PM-Y65 replace PM-Y54 / PM-Y65-P replace PM-Y54-P
PM-F65 replace PM-F54 / PM-F65-P replace PM-F54-P / PM-F65W replace PM-F54W / PM-F65W-P replace PM-F54W-P
PM-R65 replace PM-R54 / PM-R65-P replace PM-R54-P / PM-R65W replace PM-R54W / PM-R65W-P replace PM-R54W-P

NPN output PM- 45 / PM- 45-C3
PNP output PM- 45-P / PM- 45-P-C3
Sensing range 6 mm 0.236 in (fixed)
Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Output operation Incorporated with 2 outputs：Light-ON / Dark-ON
Three protection circuits standard on all models

1. Reverse supply polarity protection circuit
2. Reverse output polarity protection circuit
3. Output short-circuit protection circuit

Ample beam emitting / receiving distance of 6 mm 0.236 in
The upper-limit and lower-limit positions of beam can be visually confirmed from the front, back, right and left sides of the sensor unit. This allows easy adjustment of the position of sensing object.
UL / C-UL, CE, Korean S Mark Approved
Korea's S-mark certification：NPN Output
