MR Connector
| Item No.: | TE(AMP) MR II Series |
Supplier Details
Country: Taiwan
City: North Dist., Hsinchu City 300
Address: No. 41, Aly. 13, Ln. 323, Sec. 2, Dongda Rd.
TEL: +886-3-5336733
Fax: +886-3-5336522
Online Showroom:
35 Products

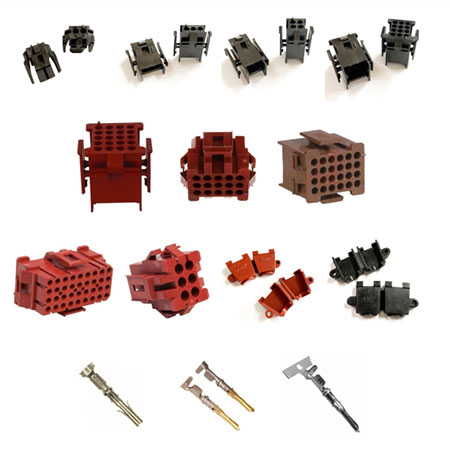

1-640507-0, 1-640508-0, 1-640509-0, 1-640510-0, 1-640511-0, 1-640512-0, 1-640513-0, 1-640514-0, 1-640515-0, 1-640516-0, 1-640517-0, 1-640518-0, 1-640519-0, 1-640520-0, 1-640521-0, 1-640522-0, 1-640523-0, 1-640524-0, 1-640525-0, 1-640526-0, 350374-1, 350967-1, 350967-2, 641294-1, 640545-1, 640545-2, 6413001-1
Rectangular Power Connectors, Housing, Plug, Wire-to-Panel / Wire-to-Wire / Wire-to-Board, 2~36 Position, 4.2 mm [.165 in] Centerline.
Number of Positions：2~36
Wire Size (AWG)： 26 ~18
Wire Size (mm²)： .12 ~.8
Row-to-Row Spacing：4.19 mm [ .165 in ]
Length：21.34 mm [ .84 in ]
Height：12.95 mm [ .51 in ]
Accepts Wire Insulation Diameter Range：2.92 mm [ .115 in ]
Width：29.72 mm [ 1.17 in ]
UL Flammability Rating：UL 94V-0
Glow Wire Rating：Standard Part - Not Glow Wire
CSA File Number：LR7189
UL Rating：Recognized
Agency/Standard：CSA, UL
Agency/Standard Number：E28476
Operating Voltage (VAC)： 250 Operating Voltage (VDC)： 250
Rectangular Power Connectors, Housing, Plug, Wire-to-Panel / Wire-to-Wire / Wire-to-Board, 2~36 Position, 4.2 mm [.165 in] Centerline.
Number of Positions：2~36
Wire Size (AWG)： 26 ~18
Wire Size (mm²)： .12 ~.8
Row-to-Row Spacing：4.19 mm [ .165 in ]
Length：21.34 mm [ .84 in ]
Height：12.95 mm [ .51 in ]
Accepts Wire Insulation Diameter Range：2.92 mm [ .115 in ]
Width：29.72 mm [ 1.17 in ]
UL Flammability Rating：UL 94V-0
Glow Wire Rating：Standard Part - Not Glow Wire
CSA File Number：LR7189
UL Rating：Recognized
Agency/Standard：CSA, UL
Agency/Standard Number：E28476
Operating Voltage (VAC)： 250 Operating Voltage (VDC)： 250
- If you can't find the connector you need, please contact us.
