VL Connector
| Item No.: | JST VL Series |
Supplier Details
Country: Taiwan
City: North Dist., Hsinchu City 300
Address: No. 41, Aly. 13, Ln. 323, Sec. 2, Dongda Rd.
TEL: +886-3-5336733
Fax: +886-3-5336522
Online Showroom:
35 Products
VLP-02V, VLP-03V, VLP-04V, VLP-06V, VLP-08V, VLP-12V
VLP-02V-1, VLP-03V-1, VLP-04V-1, VLP-04VN-1, VLP-06V-1, VLP-08V-1, VLP-12V-1, VLR-02V, VLR-03V, VLR-04V, VLR-04VN, VLR-06V, VLR-08V, VLR-12V, B02P-VL, B03P-VL, B04P-VL, B04P-VL-VN-1.8, B06P-VL, B08P-VL, B012P-VL, VLS-02V, VLS-03V, VLS-08V, VLS-12V, SVF-42T-P2.0, SVF-61T-P2.0, SVF-81T-P2.0

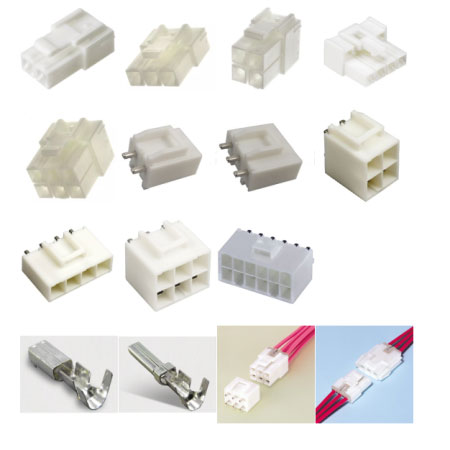

This VL connector is 6.2 mm pitch wire-to-wire and wire-to-board connector, designed for large current up to 20 A (1 or 2-circuit with 3.5mm2 wire). Secondary retainer, which prevents from insufficient insertion of contact and coming off contact, may use and large current circuit can be connected certainly and safety.
Housing VLP-04VN-1
VL：Series name. P：Part name plug R：Part name Adapter. 04：No. of circuits 2、3、4、6、8、12. V：Flammability V…UL94V-0. N：Shape None…2, 3circuits, and 4 circuits(Dual-row) N….4 circuits(single-row). 1：Outer lock
Header B04P-VL-VN-1
B： Assembly style, TOP entry type. 04P： No. of circuits 2、3、4 . VL：Series name. VN：Shape, None…2, 3circuits, and 4 circuits(Dual-row) N….4 circuits(single-row). 1:1…High-current type
Retainer VLS-02V
VL： Series name. S：Part name, Retainer. 02： No. of circuits 2、3、4*. V：Flammability, V…UL94V-0
*4 circuits(single-row)…08, 4 circuits(Dual-row)…02
Contact SVSF-61T-S2.0
S：from S…Strip from, B…Loose piece. VS：series name. F：Shape, F…Socket contact.
61：Applicable wire, 61...AWG#20 to 14, 81…AWG # 12
T：Surface finish, T…Tin-plated(Reflow treatment). S：Material, S…High conductivity copper alloy. 2.0：Terminal size
VLP-02V-1, VLP-03V-1, VLP-04V-1, VLP-04VN-1, VLP-06V-1, VLP-08V-1, VLP-12V-1, VLR-02V, VLR-03V, VLR-04V, VLR-04VN, VLR-06V, VLR-08V, VLR-12V, B02P-VL, B03P-VL, B04P-VL, B04P-VL-VN-1.8, B06P-VL, B08P-VL, B012P-VL, VLS-02V, VLS-03V, VLS-08V, VLS-12V, SVF-42T-P2.0, SVF-61T-P2.0, SVF-81T-P2.0
This VL connector is 6.2 mm pitch wire-to-wire and wire-to-board connector, designed for large current up to 20 A (1 or 2-circuit with 3.5mm2 wire). Secondary retainer, which prevents from insufficient insertion of contact and coming off contact, may use and large current circuit can be connected certainly and safety.
Housing VLP-04VN-1
VL：Series name. P：Part name plug R：Part name Adapter. 04：No. of circuits 2、3、4、6、8、12. V：Flammability V…UL94V-0. N：Shape None…2, 3circuits, and 4 circuits(Dual-row) N….4 circuits(single-row). 1：Outer lock
Header B04P-VL-VN-1
B： Assembly style, TOP entry type. 04P： No. of circuits 2、3、4 . VL：Series name. VN：Shape, None…2, 3circuits, and 4 circuits(Dual-row) N….4 circuits(single-row). 1:1…High-current type
Retainer VLS-02V
VL： Series name. S：Part name, Retainer. 02： No. of circuits 2、3、4*. V：Flammability, V…UL94V-0
*4 circuits(single-row)…08, 4 circuits(Dual-row)…02
Contact SVSF-61T-S2.0
S：from S…Strip from, B…Loose piece. VS：series name. F：Shape, F…Socket contact.
61：Applicable wire, 61...AWG#20 to 14, 81…AWG # 12
T：Surface finish, T…Tin-plated(Reflow treatment). S：Material, S…High conductivity copper alloy. 2.0：Terminal size
- If you can't find the connector you need, please contact us.
