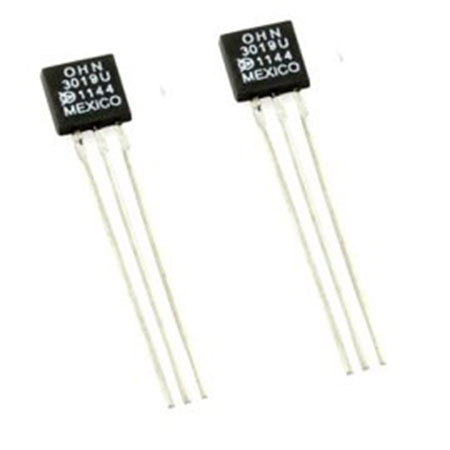

Hall Effect Sensor - OHN3019U

Hall Effect Sensor

Item No.: OHN3019U
Supplier Details
Country: Taiwan
City: North Dist., Hsinchu City 300
Address: No. 41, Aly. 13, Ln. 323, Sec. 2, Dongda Rd.
TEL: +886-3-5336733
Fax: +886-3-5336522
Online Showroom: 35 Products
Integrated Circuits (ICs)

Mfr.:Optek / TT Electronic
Description:Board Mount Hall Effect / Magnetic Sensors.
Operating Supply Voltage:4.5V ~ 24V
Current - Supply (Max):7Ma
Current - Output (Max):25mA
Operating Temperature:- 20°C ~ 85°C (TJ)
Sensing Range:50mT Trip, 12.5mT Release
Operating Point Min / Max:175 G to 500 G
Release Point Min / Max (Brp):125 G to 450 G
Mounting Type:Through Hole

Features:
  • Designed for non-contact switching operations
  • Operates over broad range of supply voltages (4.5 V to 24 V)
  • Operates with excellent temperature stability in harsh environments
  • Drive capability up to 7 TTL loads
  • If you can't find the Integrated Circuits (ICs) you need, please contact us.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Hall Effect Sensor

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
