Electric Motor Varnish
| Item No.: | UP-142 |
Supplier Details
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom:
103 Products
Product description
ELAN-protec UP142 is a single component impregnation resin. The resin is based on specially modified, unsaturated polyester-imide, VOC-free. The material shows low emissions.
The formulation of the resin system contains no styrene or vinyl toluene as a reactive thinner. This offers varied advantages regarding reliability of processing.
The resin is characterized by a viscosity which is suitable for dip impregnation as well as for trickle and roll-dip processes. The resin compound has good stability and exhibits fast surface drying, too, even in thin film.
Due to the low emissions of the resin compound during cure an elaborate exhaust system will be unnecessary.
ELAN-protect UP142 is no dangerous goods and fulfils the directives 2011/65/EU, 2003/11/EC and 2006/121/EC. The raw materials are pre-registered acc. To the directive No. 1907/2006/EC(REACH). The material does not contain by recipe sustances listed in Art. 57/Anex XIV 1907/2006/EC from 9th of October 2008(SVHC).
Areas of application

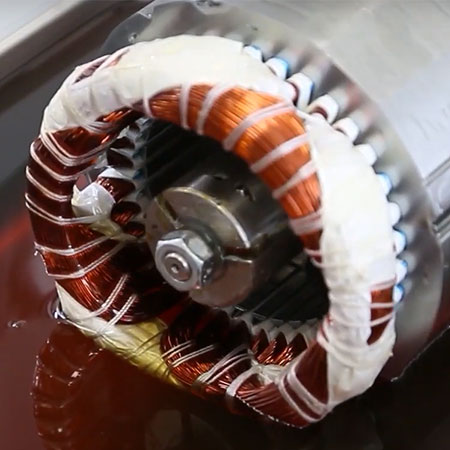

ELAN-protect UP142 is designated for the trickle and roll-dip impregnation of all conventional rotating and stationary windings, including traction application, where a tough and resilient crack free result is required.
Properties of the cured resin
The resin compound cures to give a tough resilient material with excellent mechanical and electrical properties, even at higher temperatures.
Due to the excellent thermal properties the material can be used in thermal class 180 acc. DIN EN60085(former: H). The product has been recognized by UL under file no. E73288.
MORE
