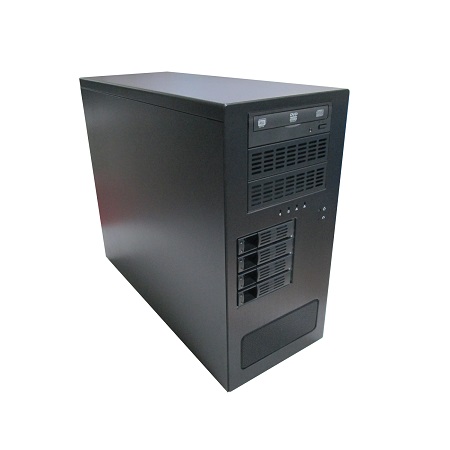

EATX Tower System
Item No.: | P705 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--

Online Showroom:
30 Products
This custom server system is for top of the world medical equipment manufacturers. Ashinne designed this custom chassis to meet some special requirements. The final system certification(CE, FCC and CB) had been done in Taiwan via Ashinne’s assistance.
Application: Computing Server System for Medical Equipment
Key Features:
Dual Intel Xeon processor in EATX MB
4 x 3.5” hot-swappable HDD + 3 x 5.25” drive bay
6 x PCIe expansion slot
1 x PCI expansion card with custom PCIe to PCI riser card
PS/2 size ATX PSU
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: Tower Chassis with EATX MB
Power Supply: PS/2 size ATX PSU
Drive Capacity: 3 x 3.5” Hot-Swappable HDD + 3 x 5.25” Drive
Expansion Slot: 6 x PCIe 1 x PCI+ Custom PCIe to PCI Riser Card
Cooling Fan: 1 x 120*120*25mm + 2 x 80*80*25mm Fan
LED Indicator: Power on, HDD, 2 x LAN
Button: Power, Reset
Dimension (DxWxH): 460 x 190 x 365mm
More info: http://www.ashinne.com.tw/product-list.aspx?tid=2
