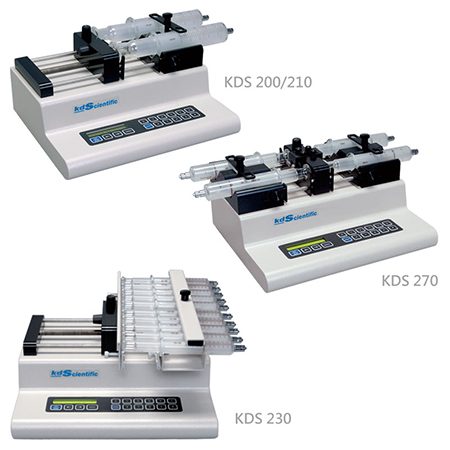

Dual Syringe Pump - KDS200/KDS210/KDS230/KDS270

Dual Syringe Pump

Item No.: KDS200/KDS210/KDS230/KDS270
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 6F.-10, No. 14, Ln. 609, Sec. 5, Chongyang Rd., Sanchong Dist.
TEL: +886-3-5368830
Fax: +886-3-5368891
Online Showroom: 101 Products
KDS200 series Syringe Pump
【Origin】
KDS/USA

【Applicable industry】
Micro channel, electrophoresis, plasma resonance, Bio technology, animal experiments, micro liquid feed, quantitative liquid feed, cell culture, instruments calibration, emulsification experiments and reaction vessel loop.

《Dual syringe infusion pump KDS200》
---Variety of combinations with different syringes and flow rates---

【Function and Feature】
  1. Minimum flow rate of 0.1μl/hr.(with 10μl syringe)
  2. Holds 1 or 2 syringes from 10μl to 140ml each.

《Dual syringe infusion/withdrawal pump KDS210》
---Same as KDS200 but with refill function---

【Function and Feature】
  1. Holds 2 syringes from 10μl to 140ml each.
  2. Multiple mode selection:
  • infusion –withdrawal
  • infusion then withdrawal
  • withdrawal then infusion
  • continuous cycle

《Multi-syringe infusion/withdrawal pump  KDS230》
---Same as KDS200 but with refill function---

【Function and Feature】
Multiple syringe holders:
  • 1 to 10 syringes 10μl to 10ml
  • 1 to 6 syringes 20ml to 60ml
  • 1 to 4 syringes 100ml to 140ml

Multiple mode selection:
  • I nfusion
  • withdrawal
  • Infusion then withdrawal
  • withdrawal then infusion
  • continuous cycle

《Continuous Cycle Syringe Pump KDS270》

---Same as KDS200 but with refill function---

【Function and Feature】
  1. Two-in two-out circular flow,10μl to 60ml each.
  2. With the check valves, pump can inject and refill syringes for a continuous dispense.

【Specs】




【Note】
  • Optional alarm: every KDS pumps can purchase additional alarm device, sirens when process ends.
  • Photos are for references only.
