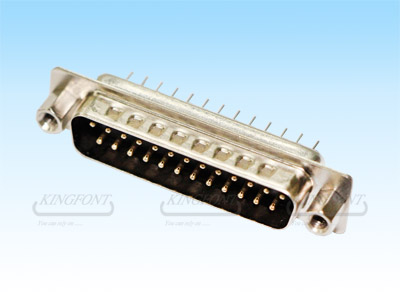

Product Name:D-SUB
MALE 180° DIP
Part No:DSBSS-M XX XX B107V3LPG
(1)
(2)
(1) PIN Number
25: 25 pin
(2) Contact
area plating:
01:
Gold flash plating
30: 30u” Gold plating
Pitch: 2.77 mm
Number of port: 1
Circuits: 25
RoHS compliant
Net
Weight:8 g
Packing:
Tray: 50pcs/Tray; 20trays/Carton
APPLICATION:
1. D-sub
connectors are often found on communications ports, creating connections
between different products such as computers, printers, and power supply
units.
2. Computer video output / Game controller ports /Multi-channel analog
SPECIFICATION:
Electrical:
1. Current rating: 3 A (Per pin)
2. Withstanding Voltage: AC 500V(1 minutes)
3. Contact resistance: 30 MillionΩ Max.
4. Insulating Resistance: 1000
MegΩ min
Environmental:
1. Operating temperature: -55℃ ~ 105℃
MATERIAL:
1. Shell:
SPCC
2. INSULATOR:
PBT UL 94V-0, Black.
3. Contact:
Copper Alloy
4. Screw:
Copper Alloy
PRODUCT FEATURES:
