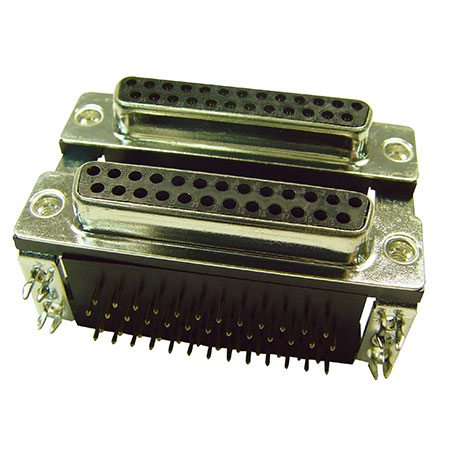

Dual Port D Sub Connector

Item No.:

DS007-XXXX

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : D-SUB CONNECTOR
Industrial Computers parts, Communications system, Network ports, Computer video output, Video Games parts, and also, Wire-contact attachment types
Solder Type : Dual Port
Mate Type : Plug & Socket
No. Of PINS : 09,15,25,37
Right Angle
ISO Certification : ISO9001 & ISO14000
Rohs Compliance
Material : PBT, PA66, LCP
Current Rating: 3A
Voltage Rating: 250V AC R.M.S.
Insulator Resistance: 1,000MΩ, minute
Dielectric Withstanding: 1,000V DC for one minute
Contact Resistance: 30mΩ, MΩ maximum
Operating Temperature: -55 to +105℃
Contact Material: Brass
Insulator Material: PBT (UL94V-0)
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with more 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with West Europe, the North United States, Japan, South Korea, Middle-East and other international brands connectors.
