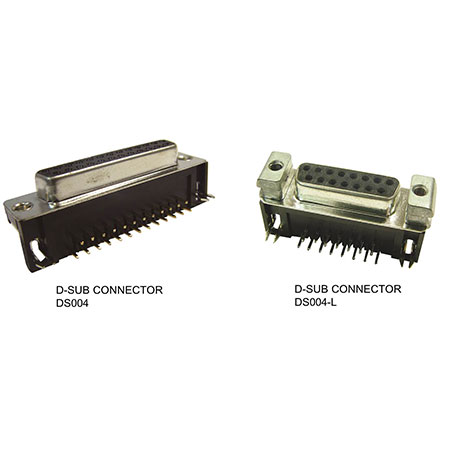

Right Angle D Sub Connector

Item No.:

DS004-XXXX / DS004L-XXXX

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : D-SUB CONNECTOR
Communication and Network System, Computer video output, Game controller ports, and also, Wire-contact attachment types, ( at least seven different methods used to attach wires to the contacts in D-sub connectors)
Solder Type : Right Angle
Mate Type : Plug and Socket
Number of Contact : 09,15,25,37,50
Rohs Compliance : Yes & ISO9001, ISO14000
Material: PBT, PA66, LCP
Current Rating: 1.0A
Voltage Rating: 250V AC/rms 60Hz
Insulator Resistance: 1,000MΩ (minimum)
Contact Resistance: 20mΩ (maximum)
Dielectric Withstanding: AC 1,000V/minute
Contact Material: Copper alloy
Insulator Material: Glass-filled thermoplastic PBT UL94V-0
Shell: SPCC
Clinch Nut: Brass, Nickel-plated
Boardlock: Brass, Tin-plated
Screwlock: Brass, Nickel-plated
Packaging Details : Offer variety of packaging choises, Basically are plastic tray in carton box.
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with the Europe, the United States, Japan, Korea and other international brands connectors.
