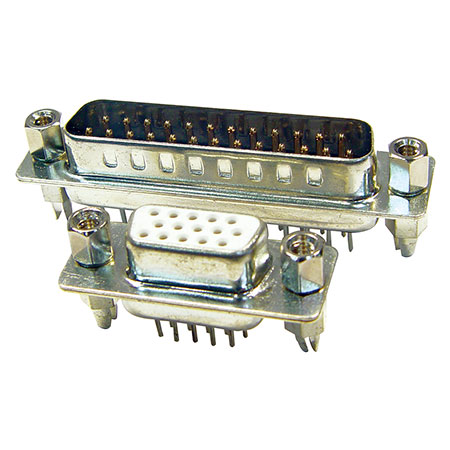

DIP D Sub Connector

Item No.:

DS002-XXXX

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : D-SUB CONNECTOR
For Communications and Network ports, Computer video output, Game controller ports, and also, Wire-contact attachment types ( at least seven different methods used to attach wires to the contacts in D-sub connectors)
Solder Type : DIP Straight
Mate Type : Plug & Socket
Number Of PINS : 09,15,25,37,50
ISO9001, ISO14000/ ISO Ceridicates & Rohs Compliance
Material : PBT, PA66, LCP
Current Rating: 5.0A
Contact Resistance: 20mΩ maximum
Shell: cold roller steel
Insulator Resistance: 1,000MΩ minimum
Dielectric Withstanding: 1,000V DC for 1 minute
Operating Temperatures: -55 to +125°C
Contact Material: Brass Gold plated
Insulator Material: Nylon 9T black (UL94V-0)
Contact: Phosphor bronze
Contact Plating: Gold plating over nickel in contact area, nickel plating in A's area
Shell: Steel nickel-plated
Packaging Details : In general, plastic tray at first then put into carton box, also offer different packaging requirements
For Communication and Network System, Video Games parts and Aftermarket parts, Electronic Products, Industrial Computers etc.
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with more 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with West Europe, the North United States, Japan, South Korea, Middle-East and other international brands connectors.
