Low Voltage Dry Type Transformer - 8-1

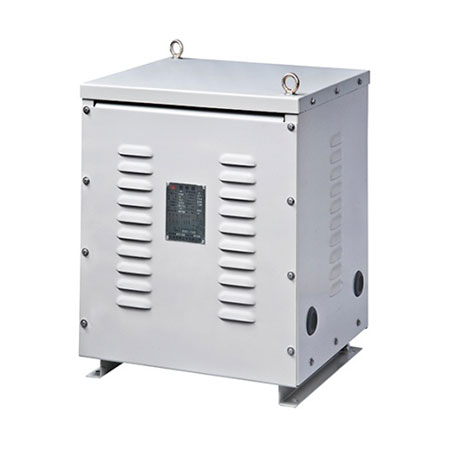

Low Voltage Dry Type Transformer

Item No.: 8-1
Supplier Details
Country: Taiwan
City: Taoyuan City 330
Address: No.18, Ln. 50, Daren Rd., Taoyuan Dist.
TEL: +886-3-3639519
Fax: +--
Online Showroom: 26 Products
H Class Dry Type Transformers   Specification
  1. According to the standard: CNS 13390 or IEC 60076-11 or national standards
  2. Efficiency: Designed according to customer demand efficiency
  3. Voltage level: 12kV and below
  4. Type:AN
  5. Number of phases: single phase or three phase
  6. Frequency: 50Hz or 60Hz
  7. Wiring method: Dyn1 or Dyn11 (other wiring can also be made as needed)
  8. Material: copper-copper, copper-aluminum, aluminum-aluminum
  9. Carton protection class:IP00 or IP20
  10. Capacity:below 500kVA
  11. Performance:by order design
  12. Suitable place: electronic factory, office building, etc.
  13. Test: Before leaving the factory, the transformer performs in-plant testing and submits a test report..
  14. Warranty: Store for 18 months after delivery or run for 12 months under normal use.
  15. Factory Certification: ISO 9001, ISO 14001, OHSAS 18001, UL 1561, TAF17025 Laboratory
  16. Delivery method: Domestic - truck up to the ground / Foreign – CIF
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Low Voltage Dry Type Transformer

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
