Tungsten Carbide Drill - 3-5

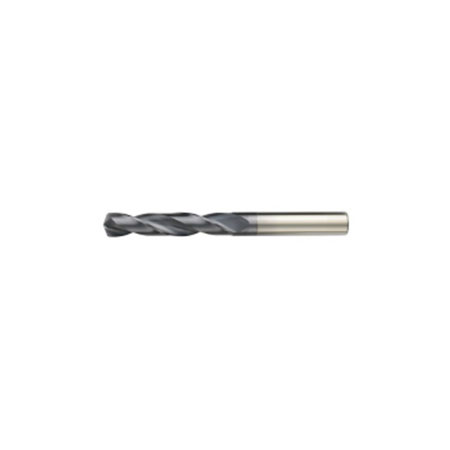

Tungsten Carbide Drill

Item No.: 3-5
Supplier Details
Country: Taiwan
City: Taiwan
Address: No.95, Zhongzheng 2nd St., Yongkang Dist., Tainan City
TEL: +886-6-2426816
Fax: +886-6-2423818
Online Showroom: 59 Products
  1. Item: Tungsten Carbide Drill – reinforced shank
  2. Tungsten Carbide Grain size: 0.3μm
  3. Co(%) :8%
  4. Helix Angle: 30°
  5. Flute Diameter: 1.5~12.0 mm
  6. Shank Diameter: 4.0~12.0 mm
  7. Flute Length: 10.0~55.0 mm
  8. Full Length: 47~102 mm
  9. Coating: Fire wear resistin
  10. Workpiece materials: aluminum alloy, cast iron, alloy steel, stainless steel, tool steel.(HRC55)
  11. Application: for hole drilling and suitable for high-speed wet or dry processing


We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Tungsten Carbide Drill

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
