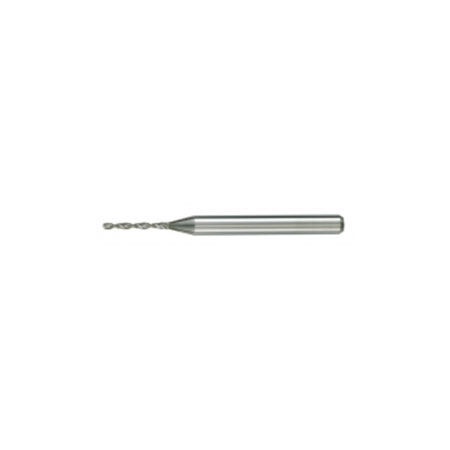

Item: Tungsten Carbide Drill – Micro Diameter
-
Tungsten Carbide Grain size: 0.6μm
-
Co(%) :11.5%
-
Helix Angle: 30°
-
Flute Diameter: 0.2~3.175 mm
-
Flute Length: 3.0~12.5 mm
-
Shank Diameter: 3.175 mm
-
Shank Length: 38 mm
-
Workpiece materials: aluminum alloy, stainless steel, brass(HRC45)
-
Application: for hole drilling and suitable for high-speed wet or dry processing
GEMtool Co., Ltd., was founded in 1994, providing products and services for more than one thousand customers worldwide across the industries of electronics, semiconductor, optics, automobiles, aerospace, medical treatment, biotechnology, metal processing and so on. Our products --- milling cutters, reamers, drill bits and special forming cutters are widely applied to various materials such as metal, plastics, fiberglass, carbon fiber, graphite, composite materials, and other nonmetallic materials to meet the requirements of diversity processes in tapping, drilling, boring, lathing, milling, pulling and cutting.
Technology is one of GEMtool’s cornerstones. GEMtool has the broadest range of technologies and services in the professional cutting tool industry. These advantages are supported by our full range integrated processes and facilities such as ROLLOMATIC six-axis Grinder of Switzerland, SCHNEEBRGER five-axis CNC Grinder, Ewag Grinder, Coborn RG9 Grinder, high-precision measuring equipment of ZOLLER Genius 3 and Venturion 45, and PVD, CVD coating machines.
