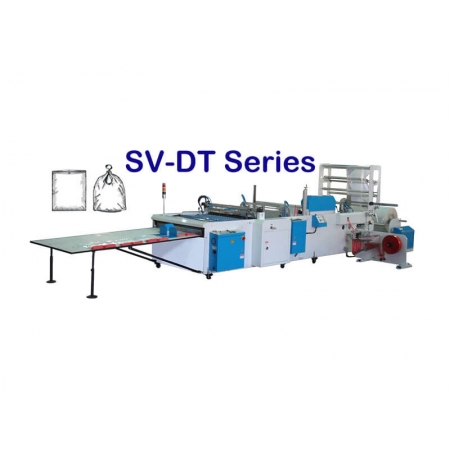

Draw Tap Bag Machine - SV-DT Series

Draw Tap Bag Machine

Item No.: SV-DT Series
Supplier Details
SHENG-FON PLASTIC MACHINE CO., LTD.
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Poly-draw Bag Making Machine(Sheet type)

MACHINE FEATURE:
  • Draw-tape slitter is specially designed for use with the draw-tape bag making machine and reduces the reel change cycle, doubles the usage time and increases production.
  • The EPC device combined with the unwinder is sensitive and stable for easy operation.
  • Fully automatic unwinder, unwind speed auto-adjust. (Optional)
  • Triangle folding device, easily and smoothly folds the single layer filminto double. (Optional)
  • Choice of overlapping EPC and triangle folding device to save on occupied installation space.
  • Mixed use of multi-functions, can produce many different styles of bags.
  • Standard equipments are the double lip folding device, bottom gusset device and side opening device. (Side opening)
  • Special rotary seal knife design makes the cleaning of seal knife safe, convenient, quick and easy.
  • Special pneumatic gate and press roller device, cooperating with the main machine, can carry and out-feed the blocked finished product. (Optional)
  • Optional equipment: self-adhesive device, pearl insertion device, punching unit, double sealing device and block out-feed device.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size (mm) Production Speed
(bags/min)		 Thickness of Film(mm) Power required Machine Size
LxWxH(M)
Width Length Top Folding Bottom Guessting
Poly-draw Bag Side Seal Bag Poly-draw Bag Side Seal Bag Draw Tape Side Seal Bag
SV-1000-DT 100~700 100~860 100~950 Up to 75mm Up to 65mm 20~100 20~160 HDPE
0.03~0.08
LDPE
0.07~0.10		 HDPE
0.03~0.08
LDPE
0.05~0.12		 6.2KW 8.33x1.75x2.0
SV-1200-DT 100~850 100~1050 100~1150 Up to 75mm Up to 65mm 20~100 20~150 HDPE
0.03~0.08
LDPE
0.07~0.10		 HDPE
0.03~0.08
LDPE
0.05~0.12		 6.7KW 9.00x1.95x2.0
SV-1500-DT 100~1150 100~1300 100~1440 Up to 75mm Up to 65mm 20~100 20~135 HDPE
0.03~0.08
LDPE
0.07~0.10		 HDPE
0.03~0.08
LDPE
0.05~0.12		 9.2KW 9.90x2.25x2.0

Optional Equipment:
  1. Air Compressor:3HP
  2. Double Sealing device
  3. Punching Device
  4. Top-fold Seal Device
  5. Self-adhesive Tape Feeding
  6. Perforation Device
  7. Air Shaft
  8. EPC with Auto Unwinder
  9. Triangle Folding Device
※Specifications are subject to change without notice.

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Draw Tap Bag Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
