DP Splitter

Item No.:

SBOX-32

Supplier Details

Country: Taiwan

City: New Taipei City 23144

Address: 7F-7, No.94, Baozhong Road, Xindian District

TEL: +886-2-29160823

Fax: +886-2-29160841

Online Showroom: 63 Products

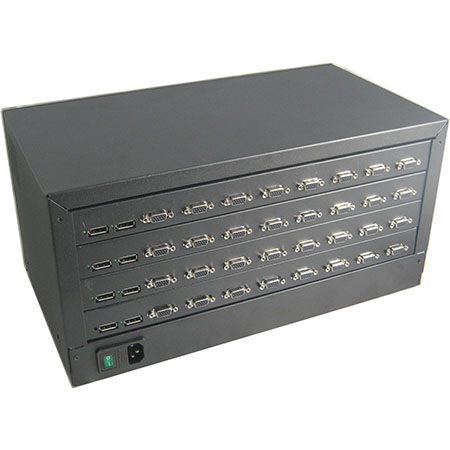

DP Splitter _ DP to VGA Splitter

SBox-32 is a SST based DP to VGA screen splitter, it should be connected after any PC with DP output port. The total number of VGA outputs from SBOX-32 is changeable and depending on target resolution you want, for example, should you need 1920x1080/60Hz per each VGA port, then SBOX-32 can offer max. up to 16 FHD outputs.
SBox-32 features with modular design for easy maintain.
Total VGA outputs:
32 ports(1024x768)
16 ports(1920x1080)
VGA outputs per module: 8 Ports, D-SUB 15 pin
Main Input: DP x 8, 2 DP per each module
Individual green LED indicator on each DP port
Main power supply: AC 100~240V /3A Fuse, one lamp power switch mounted on both front and rear panel.
Using DC 12V/5V 65W RoHS, 105℃ Long Life capacitor 9.
Bundled a 12 cm carbon brush free and silence cooling fan on front panel.
Dimension: 428(W) x 226(H) x216(D) mm
Weight: < = 10 KG
