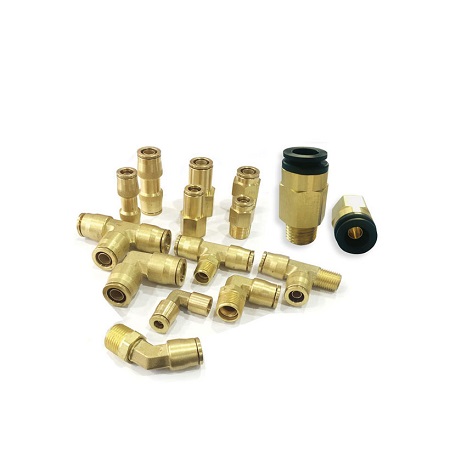

DOT Push To Connect Air Fittings Kit
| Item No.: | PMI |
Supplier Details
Country: Taiwan
City: Tainan City 711
Address: 1F., No. 86, Xinyi N. Rd., Guiren Dist.
TEL: +886-6-2309018
Fax: +--
Online Showroom:
68 Products
Air Brake Push to Connect Fittings
Applications:
Used with SAE J844 Type A and Type B nylon tubing in air brake system, or in cab air controls, except for where temperature is under -40°F(-40°C) or above +200°F(+93°C) or where battery acid can drip on tubing.
Advantages:
Air brake push-to-connect fittings are an important component of any air brake system. They are DOT compliant, meaning they meet the safety standards set by the Department of Transportation. These fittings are designed to connect the brake lines in a vehicle's air brake system, allowing for efficient and effective braking.
The push-to-connect design of these fittings makes them easy to use and install. They work by simply pushing the tube into the fitting until it clicks into place. The fitting uses a collet to hold the tube securely in place, ensuring a tight and leak-free connection.
One of the advantages of using air brake push-to-connect fittings is that they eliminate the need for special tools or expertise. Anyone can install them, even those with no previous experience with air brake systems. The fittings are designed to be intuitive and easy to use, which makes them an ideal choice for DIYers and professional mechanics alike.
Another advantage of these fittings is their versatility. They come in a wide range of sizes and configurations （unions, connectors, 45°elbow, 90°elbow, fixed or swivel, run tee, branch tee）, allowing them to be used in a variety of applications. Whether you need to connect brake lines in a truck, bus, or other type of vehicle, there is a push-to-connect fitting that will meet your needs.
Finally, air brake push-to-connect fittings are incredibly reliable. They are designed to withstand the high pressures and temperatures that are typical in air brake systems, and they are built to last. When you use these fittings, you can have confidence that your brake system will function properly and safely.
In summary, air brake push-to-connect fittings are an essential component.
Applications:
Used with SAE J844 Type A and Type B nylon tubing in air brake system, or in cab air controls, except for where temperature is under -40°F(-40°C) or above +200°F(+93°C) or where battery acid can drip on tubing.
Advantages:
- Material: Brass, EPDM O Ring
- Meet D.O.T. FMVSS 571.106 air brake specifications
- Easy and fast assembly by hand, no special tools asked
- Reusable: connect and disconnect numerous times
- Pre-applied Teflon: loctite 516 on male pipe
- Positive Seal: After tubing is inserted, seal is made no leakage
- Pressure Range: Vacuum to 150PSI
- Temperature Range: -58°F to 302°F (-50°C to 150°C)
Air brake push-to-connect fittings are an important component of any air brake system. They are DOT compliant, meaning they meet the safety standards set by the Department of Transportation. These fittings are designed to connect the brake lines in a vehicle's air brake system, allowing for efficient and effective braking.
The push-to-connect design of these fittings makes them easy to use and install. They work by simply pushing the tube into the fitting until it clicks into place. The fitting uses a collet to hold the tube securely in place, ensuring a tight and leak-free connection.
One of the advantages of using air brake push-to-connect fittings is that they eliminate the need for special tools or expertise. Anyone can install them, even those with no previous experience with air brake systems. The fittings are designed to be intuitive and easy to use, which makes them an ideal choice for DIYers and professional mechanics alike.
Another advantage of these fittings is their versatility. They come in a wide range of sizes and configurations （unions, connectors, 45°elbow, 90°elbow, fixed or swivel, run tee, branch tee）, allowing them to be used in a variety of applications. Whether you need to connect brake lines in a truck, bus, or other type of vehicle, there is a push-to-connect fitting that will meet your needs.
Finally, air brake push-to-connect fittings are incredibly reliable. They are designed to withstand the high pressures and temperatures that are typical in air brake systems, and they are built to last. When you use these fittings, you can have confidence that your brake system will function properly and safely.
In summary, air brake push-to-connect fittings are an essential component.
