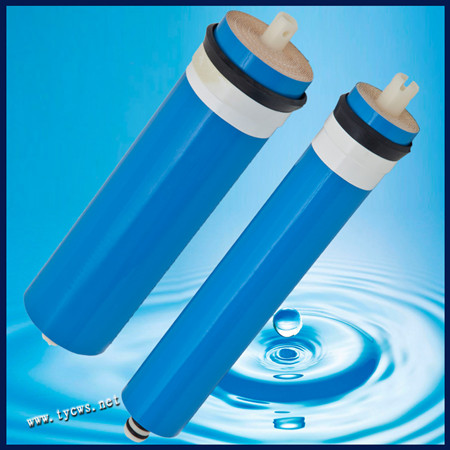

Domestic RO Membrane of Purifier
| Item No.: | TY-UPL-2012-100 |
Supplier Details
Country: China
State: Guangdong
City: Guangzhou
Address: Unit 3008, No.138, Helong Rd, Jiahe St, Baiyun Dec, Guangzhou, China
TEL: +0086-20-86686623
Fax: +0086-20-37415270
Online Showroom:
30 Products
The household ro membrane for water purifier is mainly used for various household pure water machine, hospital, laboratory pure water device and other small systems.
E honeycomb structure, has the very good filter characteristics, can effectively remove the suspended solids in the fluid, rust, grain and other impurities.
Testing Conditions: Testing Pressure..................... 60 psi(ULP1810-40,ULP1812-50,ULP1812-75, ULP2012-100, HOR2012) 100 psi (ULP2812, ULP3012, ULP3020) Testing Solution Temperature............... 25centigrade Testing Solution Concentration(NaCl) ...... 250 ppm (ULP1810-40,ULP1812-50,ULP1812-75,ULP2012-100, HOR2012) ...... 500 ppm (ULP2812, ULP3012, ULP3020) pH Value of Testing Solution ............... 7.5 Recovery Rate of Single Element .......... 15centigrade Operation limits and conditions Max. Working Pressure....................... 300psi(2.07Mpa) Max. Feedwater Temperature................... 45centigrade Max. Feedwater SDI........................ 5 Residual chlorine Concentration of Feedwater...... <0.1ppm .......... <0.5 ppm (HOR2012) pH Range of Feedwater during Continuous Operation...... 3~10 pH Range of Feedwater during Chemical Cleaning...... 2~12 Max. Pressure Drop of Single Membrane Element....... 10psi (0.07Mpa)
E honeycomb structure, has the very good filter characteristics, can effectively remove the suspended solids in the fluid, rust, grain and other impurities.
Testing Conditions: Testing Pressure..................... 60 psi(ULP1810-40,ULP1812-50,ULP1812-75, ULP2012-100, HOR2012) 100 psi (ULP2812, ULP3012, ULP3020) Testing Solution Temperature............... 25centigrade Testing Solution Concentration(NaCl) ...... 250 ppm (ULP1810-40,ULP1812-50,ULP1812-75,ULP2012-100, HOR2012) ...... 500 ppm (ULP2812, ULP3012, ULP3020) pH Value of Testing Solution ............... 7.5 Recovery Rate of Single Element .......... 15centigrade Operation limits and conditions Max. Working Pressure....................... 300psi(2.07Mpa) Max. Feedwater Temperature................... 45centigrade Max. Feedwater SDI........................ 5 Residual chlorine Concentration of Feedwater...... <0.1ppm .......... <0.5 ppm (HOR2012) pH Range of Feedwater during Continuous Operation...... 3~10 pH Range of Feedwater during Chemical Cleaning...... 2~12 Max. Pressure Drop of Single Membrane Element....... 10psi (0.07Mpa)
