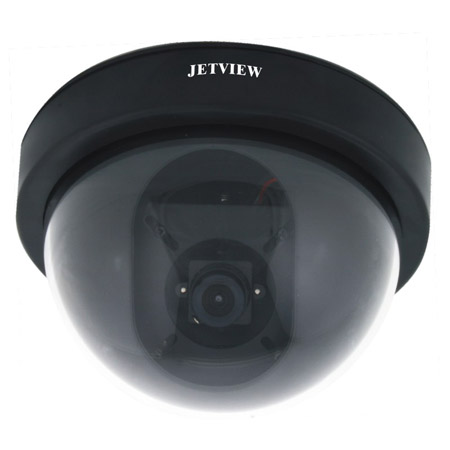

Dome Camera
Item No.: | 04 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* 1/4" Sharp
* Resolution: 420TVL
* Lens: 4mm, 6mm, 8mm
Specification
* 1/4" Sharp
* Resolution: 420TVL
* Lens: 4mm, 6mm, 8mm
Specification
Model | JT-1V04PZ |
JT-1V04NZ | |
Image Sensor | 1/4" Sharp |
Signal System | PAL / NTSC |
Effective Pixels | PAL: 512 (H) × 582 (V) |
NTSC: 512(H) x 492(V) | |
Scanning Frequency | PAL: 50Hz |
NTSC: 60Hz | |
Horizontal Resolution | 420TVL |
Electronic Shutter | PAL: 1/50-1/100,000Sec |
NTSC: 1/60-1/100,000Sec | |
S/N Ratio | More than 48dB |
Minimum Illumination | 1.5Lux/F2.0 |
ATW | Automatic |
Video Output | 1.0Vp-p,75Ohm |
Lens | 4mm/6mm/8mm(Optional) |
Power Supply | DC12V |
Current Consumption | 120mA(Maximum) |
Operation Temperature | -10℃-45℃ |
Net Weight | 220g |
Net Weight | 290g |
Dimension | 118 x 75mm(D x H) |
Packing Dimension | 120 x 120 x 92 (L x W x H) |
