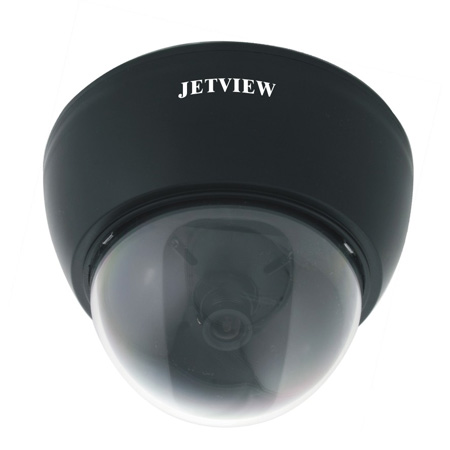

Dome Camera
Item No.: | JV-1CG2PZ/ JV-1CG2NZ |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654

Online Showroom:
57 Products
Key Features:
* 1/3" Sony Super HAD II
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
Specification
* 1/3" Sony Super HAD II
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
Specification
Model | JV-1CG2PZ | |||
JV-1CG2NZ | ||||
Image Sensor | 1/3" Sony Super HAD II | |||
Signal System | PAL/NTSC | |||
Effective Pixels | PAL: 500(H)×582(V) | |||
NTSC: 510(H)×492(V) | ||||
Horizontal Resolution | 420TVL | |||
Minimum Illumination | 0.01Lux/F1.2 | |||
Synchronization System | Internal | |||
S/N Radiation | More than 50dB | |||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | |||
White Balance | Automatic | |||
Video Output | BNC 1.0Vp-p, 75Ohm | |||
Lens | 4mm, 6mm, 8mm (Optional) | |||
Power Supply | DC12V | |||
Consumed Current | 150mA (Max.) | |||
Operation Condition | -15℃~55℃, RH85% (Max.) | |||
Material of Boday | Plastic | |||
Net Weight | 210G | |||
Gross Weight | 260G | |||
Product Dimension | 115 x 88mm (D×H) | |||
Package Dimension | 125 x 125 x 95mm (L×W×H) |
