DMD Insulation Paper

Item No.:

DMD paper

Supplier Details

Country: Taiwan

City: Taichung City 428017

Address: No. 12-1, Qiancun E. Rd., Daya Dist.

TEL: +886-4-25685848

Fax: +886-4-25685857

Online Showroom: 103 Products

Features and application

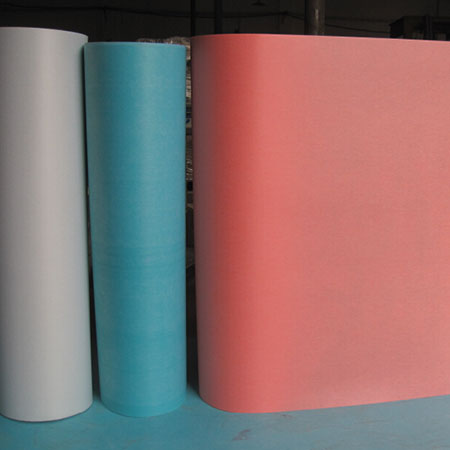

DMD insulation paper is a three-layer flexible laminate which has two layers of polyester fiber non-woven fabric outside and one layer of polyester film in the center
Thermal class F(155℃) or thermal class B(155℃) with excellent electrical insulation properties, excellent processing performance and high mechanical strength.
Mainly used in motor slot insulation, turn-to-turn insulation, dry type transformer coil insulation, insulation pad for electrical parts and other fields.
Standard thickness: 0.20mm, 0.25mm, 0.30mm, 0.35mm, 0.46mm. Other thickness can be customized according to customer’s requirement.
Color: white, blue.
Other colors can be customized according to customer’s requirement.
Stored in a clean, dry, ventilated place, keep away from fire and heating, avoid direct sunlight.
Sell in rolls. Standard width or slitting into required width(s).

Standard width : 1000mm
Packaging method : Carton
Free sample : A4
