Digital To Analog Converter

Item No.:

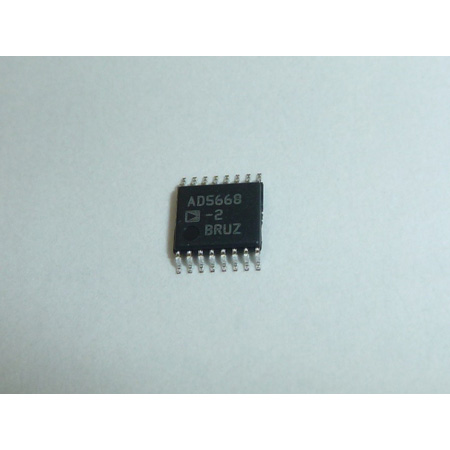

AD5668BRUZ-2

Supplier Details

Country: Taiwan

City: Taipei

Address: 11493 8F, No.79, Chow Tze St

TEL: +886-2-55825588

Fax: +886-2-55805500

Online Showroom: 78 Products

Octal, 12-/14-/16-Bit SPI Voltage Output denseDAC with 5 ppm/°C On-Chip Reference
Description: The AD5628/AD5648/AD5668 devices are low power, octal, 12-/14-/16-bit, buffered voltage-output DACs.
Application:
Process control, Data acquisition systems, portable battery-powered instruments Digital gain and offset adjustment, programmable voltage and current sources Programmable attenuators
Features:
Low power, small footprint, pin-compatible octal DACs
-AD5668: 16 bits
-AD5648: 14 bits
-AD5628: 12 bits
14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-lead WLCSP
On-chip 1.25 V/2.5 V, 5 ppm/°C reference
Power down to 400 nA at 5 V, 200 nA at 3 V
2.7 V to 5.5 V power supply
Guaranteed monotonic by design
Power-on reset to zero scale or midscale
3 power-down functions
Hardware LDAC and LDAC override function
CLR function to programmable code
Rail-to-rail operation
Delivery time: Usually 5-7 days from distributor
Payment: T/T in advance
