Digital Push Pull Force Gauge
Item No.: | FSH Series |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 6F.-10, No. 14, Ln. 609, Sec. 5, Chongyang Rd., Sanchong Dist.
TEL: +886-3-5368830
Fax: +886-3-5368891
Online Showroom:
101 Products

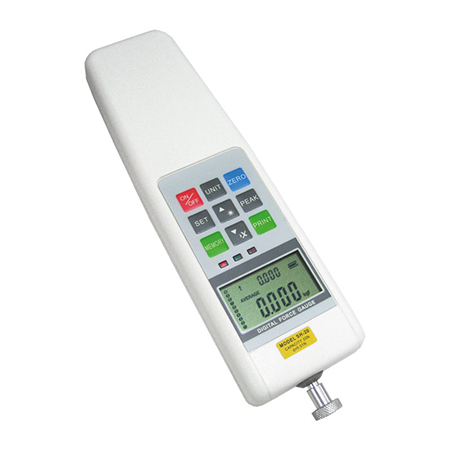

FSH Digital Force Gauge
【Origin】
Taiwan
【Function and Feature】
【Accessories】
【Specs】
【Origin】
Taiwan
【Function and Feature】
- High accuracy with ±0.5%, high resolution with minimum reading of 0.1g.
- Peak-lock feature, able to lock the peak value during tests.
- Peak-lock timer, set display time of peak value between 1-10 seconds.
- Comparison Function: Max and minimum deviation setting with red and green light indicators and alarms.
- Memory Function: Can store 10 sets of testing data with average result calculation.
- 3 selections of units: N, kgf, lbf.
- LCD screen can be rotated upside down.
- Power Saving Function: Set auto power-off between 1-60 minutes.
- RS232C output, able to connect to printers or computers for printing and analyzing.
- Able to set maximum loading. Once maximum value is reached, the station will stop operating to prevent and protect loading cell and samples break down.
- Force direction indicator / Screen backlight/ Power indicator / Average value display.
【Accessories】
- Testing software.
- Cable.
【Specs】
- Internal Loadcell
- External S Shape Loadcell
