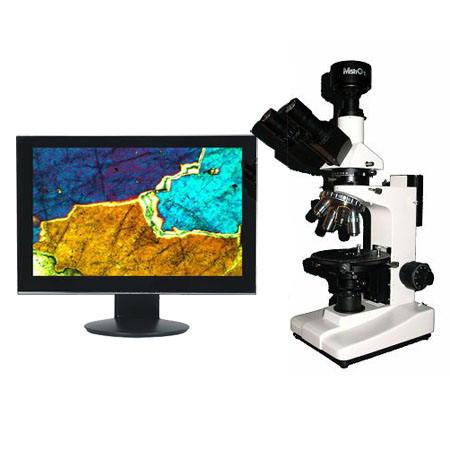

Digital Polarizing Microscope
| Item No.: | ME51 |
MSHOT® ME51 is a reflected polarizing microscopy system with static 5 mega pixel high-resolution color digital camera. It can capture still images or display alive video on PC screens, edit the images and conduct measurement across the images.ME51 is perfect for single-polarized, orthogonal polarized light and cone-ray observation. It
can be widely used for scientific and teaching research.
Benefit:
◆ Wide field eyepiece and strain-free plan achromatic objectives or infinity strain-free plan achromatic objectives
◆ Removable Polarizer devices, 360°polarization direction with 0,90,180,270 four stalls
◆ Circular 360°removable rotatable stage
◆ 6V/20W Halogen bulb
◆ With static 5 mega pixel dynamic 2 mega pixel microscope camera. USB2.0 high-speed interface
Specification:
Standard table | |
Eyepiece | Wide field eyepiece 10X(Φ18mm) |
Eyepiece 10X(Φ18mm) with cross lines (0.1mm) | |
Objective | Strain-free plan achromatic objectives 4X/0.10(cover glass 01.7 mm) |
Strain-free plan achromatic objectives 10X/0.25(cover glass 01.7 mm) | |
Strain-free plan achromatic objectives 40X/0.65(cover glass 01.7 mm) | |
Strain-free plan achromatic objectives 60X/0.85(cover glass 01.7 mm) | |
Viewing Head | Trinocular 30° |
Indirect cylinder | 360°adjustable analyzer with scale and micro-cursor |
Bertrand conoscope, push-in, adjustable center | |
λ/ retardation | |
λ/4 retardation | |
Focus agencies | Rough micro-coaxial focusing, micro-grid values: 2μm, with locking and limited devices |
Converter | Quadruple, revolving nosepiece, including centering knob |
Stage | Rotatable stage (Φ150mm), 360° sub-scale, adjustable center with locking device |
Abbe condenser | NA.1.25 move up and down |
Polarizer | 360°polarization direction with 0,90,180,270 four stalls |
Filter | Frosted glass |
Interference blue contrast filter | |
Light source | 6V20W Halogen bulb |
Digital camera | MD20 / static 5 mega pixel dynamic 2 mega pixel microscope camera |
USB2.0 high-speed interface | |
Software | Ms10 |
Software Installation and Operation Manual | |
Lock encryption | |
Optional accessories:
Eyepiece | Wide field eyepiece 16X(Φ11mm) | |
Eyepiece 10X(Φ20mm) with cross lines (0.1mm) | ||
Plan achromatic 5X/0.12 | ||
Objective | Infinity strain-free plan achromatic 5X/0.12 (without cover glass ) | |
Infinity strain-free plan achromatic 10X/0.25 (without cover glass ) | ||
Infinity strain-free plan achromatic 40X/0.6 (without cover glass ) | ||
Infinity strain-free plan achromatic 60X/0.75 (without cover glass ) | ||
Filter | Green contrast filter | |
Yellow contrast filter | ||
Fluorescent | Fluorescent electronic control system with timer | |
100W wide-voltage power | ||
Phase contrast device | Eyepiece | Telescope |
Objective | Phase contrast plan achromatic 10X/0.25 | |
Phase contrast plan achromatic 20X/0.40 | ||
Phase contrast plan achromatic 40X/0.65 | ||
Phase contrast plan achromatic 100X/1.25 | ||
Condenser | Rotary phase contrast condenser(Ⅰ/ Ⅱ) | |
Inserted phase condenser | ||
Pulled phase condenser | ||
