Digital Microscope Camera
| Item No.: | MD30 |

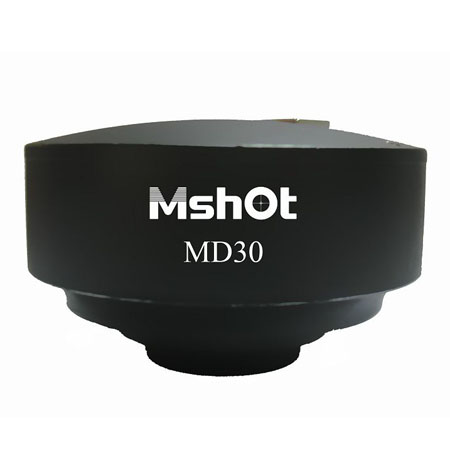

MSHOT® MD30 digital microscope camera with Standard C-MOUNT can be connected to various kinds of microscopes. Successful high-sensitivity and rapid data transfer enable MD30 digital microscope camera be popular with customers from industrial, medical, traffic and machine Vision fields etc. MD30 will let your work become easier and more efficient than before.
Key parameters:
◆ 3.0 megapixel, progressive scanning CMOS sensor.
◆ No compression, no interpolation.
◆ Support still image capture(JPG,BMP)
◆ Resolution 1600*1200, 15 fps; 800*600, 30 fps.
◆ USB2.0 interface, up to 480MPS, external power no need.
◆ Standard C-MOUNT.
Feature:
◆ Interfaces to a computer via USB2.0 technology for rapid image download.
◆ 3 Megapixel with progressive scan CMOS image sensor.
◆ Plug-to-play, no need external power
◆ Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported
◆ Fully integrated package with digital camera and imaging software for managing your imaging work flow.
Specification:
Item | Specification | Item | Specification |
Sensor | 1/ 2.″CMOS | Sensitivity | 1.0 V/ lux-sec (550nm) |
Resolution | 2048×1563(10bit) | Cable | USB2.0 (480 M Bit / sec) |
Pixel size | 3.2μm×3.2μm | Power | DC 5V ± 5% |
Frame rate | 12fps@2048×1536 | Electricity | ≈200 mA |
30 fps@640 ×480 | White balance | Manual/Auto one-touch | |
Shutter | Electronic | Exposure control | 10μs–32ms,Auto exposure |
S/N ratio | 43 dB | Software | Display/Film/Video |
Scan mode | Progressive scanning | Operating Temp. | 0°C ~ 60°C |
