Digital Microscope Camera
| Item No.: | MD20 |

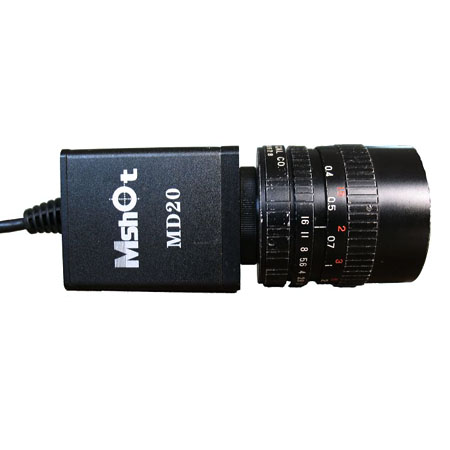

MSHOT® MD20 is a 2 megapixel digital microscope camera, researched and developed by Mingmei. Successful high-sensitivity and rapid data transfer enable MD20 digital microscope camera be popular with customers from industrial, medical, traffic and machine Vision fields etc.
Key parameters:
◆ 1/ 2" Sensor, Progressive scanning, 2.0 megapixel.◆ Resolution 1600*1200,10 fps; 800*600,40 fps.
◆ USB2.0 interface, up to 480MPS.
◆ Standard C-MOUNT.
◆ Support WINDOWS2000/XP.
Features:
◆ High resolution & high quality image
◆ Auto control exposure, contrast, brightness, saturation, image size etc.
◆ USB2.0 design makes it easy to realize the connections between PC and the camera.The application software interface is much simple too.
◆ Video function. Compressed mode is available,it makes store and transfer become so easy.
Specification:
Item | Specification | Item | Specification |
Sensor | 1/ 2〞 CMOS | Sensitivity | 1.8V/lux-sec (550nm) |
Resolution | 1600×1200(10bit) | Cable | USB2.0 (480 Mbit / sec) |
Pixel size | 3.4μm x 3.4μm | Power | DC 5V ± 5% |
Frame rate | 10fps@1600x 1200 | Electricity | ≈200 mA |
40 fps@800x 600 | White balance | Manual/Auto one-touch | |
Shutter | Electronic | Exposure control | 10μs–32ms,Auto exposure |
S/N ratio | 54dB | Software | Display/Film/Video |
Scan mode | Progressive scanning | Operating Tem | 0°C ~ 50°C |
