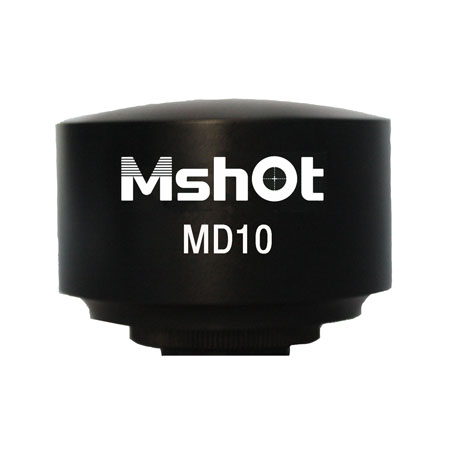

Digital Microscope Camera
| Item No.: | MD10 |
The MSHOT® MD10 1.3 megapixel digital color camera is designed for cell biology, developmental biology, and medicine marketplace. The USB2.0 interface produces fast transfer rates .It means that MD10 provides you with a smooth real time display for image previewing on your desktop monitor or laptop, while providing excellent high-quality and high-resolution images.
Key parameters:
◆ 1/ 2" Sensor, Progressive scanning, 1.3 megapixel.◆ Resolution 1280*1024,15 fps; 640*480,30 fps.
◆ USB2.0 interface
◆ Standard C-MOUNT
◆ Support WINDOWS2000/XP
Features:
◆ Connect easy. The USB2.0 design of MD10 professional digital microscope Camera makes it easy to realize the connections between PC and the camera.
◆ Simple operation.The application software of MD10 have strong compatibility and simple interface. Auto control exposure, contrast, brightness, saturation, image size etc.
◆ Data share, store and edit. Images can be previewed from the screen and users can also share, store and edit the datas. Added a projector,MD10 can be used to teaching and presentation too.
◆ Video function. Compressed mode is available,it makes store and transfer become so easy.
Performance evaluation:
Item | Specification | Item | Specification |
Sensor | 1/ 2." CMOS | Sensitivity | 1.8V/lux-sec (550nm) |
Resolution | 1280×1024(10bit) | Cable | USB2.0 (480 Mbit / sec) |
Pixel size | 5.2μm x 5.2μm | Power | DC 5V ± 5% |
Frame rate | 15fps@1280x 1024 | Electricity | ≈200 mA |
30 fps@640x 480 | White balance | Manual/Auto one-touch | |
Shutter | Electronic | Exposure control | 10μs–32ms,Auto exposure |
S/N ratio | 54dB | Software | Display/Film/Video |
Scan mode | Progressive scanning | Operating Tem | -10°C ~ 70°C |
Storage Tem | 10°C ~ 80°C | Humidity | 40 % ~ 90 % |
