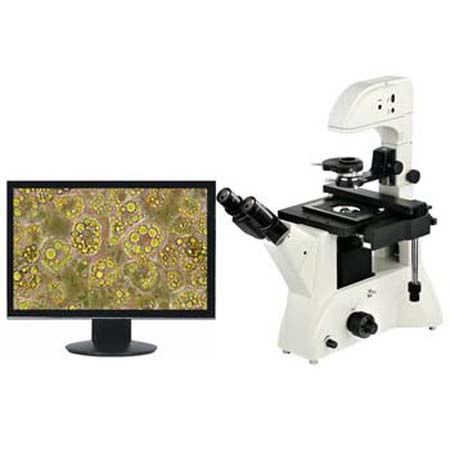

Digital Inverted Microscope
| Item No.: | ME41 |
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom:
41 Products
Standard Configuration
| Item | Specification |
| Eyepiece | Wide field WF10X(¦µ18mm) |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
| Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | |
| Eyepieces tube | Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) |
| Vertical illumination unit | 6V 20w, halogen lamp, adjustable brightness |
| Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter | |
| Focus system | Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing2μm. |
| Nosepiece | Quintuple(Frontward ball bearing inner locating) |
| Stage | Three layer mechanical Size:250mmX230mm,movingrange:154mmX154mm |
Optional accessories
| Item | Specification |
| Eyepiece | Wide field WF16X(¦µ11mm) |
| Dividing 10X(¦µ18mm) 0.1mm/Div | |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 |
| Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | |
| Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) | |
| 0.5X with dividing 0.1mm/Div | |
| Camera | Mshot digital microscope camera |
