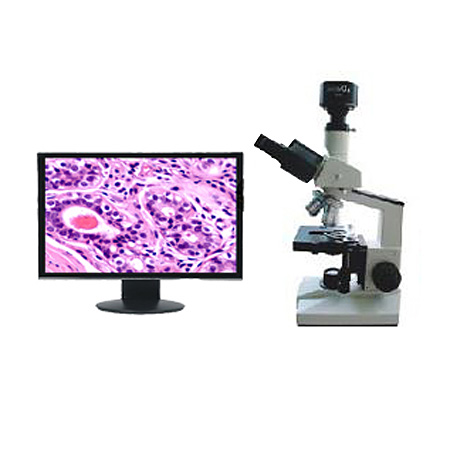

Digital Biomicroscope
| Item No.: | ME11 |
Equipped with the objective of 4X, 10X, 40X 100X and excellent optical system MSHOT® ME11 has a wide range of applications in the field of biology, industrial, medical, agriculture and other esearch, which brings more convenience to the users than the traditional microscopes.
Features:
◆ Plan achromatic objective and wile field eyepiece
◆ Trinocular tube / 30°inclined binocular head
◆ With quadruple revolving nosepiece
◆ 6V / 20W Halogen bulb, 110V/220V is selectable
◆ Phase contrast device is selectable
Specification:
Eyepiece | Wide field eyepiece 10 x (Ø18mm) |
Objective | Plan achromatic objective 4X/0.1 |
Plan achromatic objective 10X/0.25 | |
Plan achromatic objective 40X/0.65(spring) | |
Plan achromatic objective 100X/1.25(spring) | |
Head tude | Trinocular 30°inclined binocular head |
Stage | Mechanical stage Size: 210X140mm |
Converter | Quadruple revolving nosepiece |
Condenser | Abbe condenser NA.1.25 move up and down |
Light source | 6V20W Halogen bulb (adjustable) 110V/220V is selectable |
Digital camera | MD10 1.3mega pixel |
Resolution: 1280*1024 | |
30fps@640*480 / 15fps@1280*1024 | |
Connector | C-Mount connector (TV0.5XC) |
Software | Software Installation and Operation Manual |
USB2.0 cable | |
MS10 |
Optional accessories:
Eyepiece | Wide field eyepiece 16X (Ø11mm) |
Objective | Plan achromatic objective 20X/0.40 |
Converter | Quintuple Revolving Nosepiece |
Light source | LED lighting |
Dark field condenser | Dry NA: 0.77~0.91 |
Wet NA: 1.25~1.40 | |
Phase contrast device | Phase contrast plan achromatic objective |
Phase contrast condenser | |
Telescope | |
Digital camera connector | Canon / Nikon / Olympus Digital camera connector etc. |
