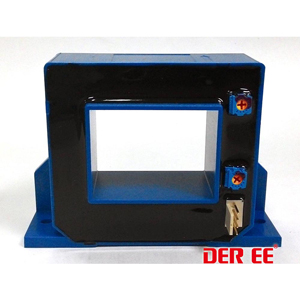

DHCT-S Hall Effect Sensor
| Item No.: | DHCT-S |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
High accuracy and superior linearity
For measurement of DC and AC current
Isolate primary circuit (high power) and secondary circuit (electronic low voltage)
Quick response
Low power consumption
Easy installation
Compact size and light weight
Insulating plastic case UL 94-V0
Specifications：
Offset (Residual) Voltage：< ±0.02V
Linearity of Rated Output Voltage：< ± 1%
Power Supply：±15V
Consumption Current：< ±20mA
Response Time：< 5 u sec
Thermal Drift of Output Voltage：< ±0.1% / of reading
Thermal Drift of Offset Voltage：< ±1mV / ℃
Hysteresis Error：±0.035V
Insulation Resistance：> 1000MΩ at 500V DC, between primary conductor aperture and output
Applied Voltage Test：2000V, 50 / 60Hz between aperture and terminals
Applications：
UPS systems
AC and DC servo systems
Speed controller of motors
NC tooling machines
Inverter-controlled welding machines
Controller of lifts
Controller of electrical vehicles
Process control devices
General and special purpose inverters
Other automatic control systems
Dimension / Weight：
90(L) x 29(W) x 65 (H)mm
Approx. 300g
Aperture size: 30.5 x 40.5mm
TEMP./Humidity：
Operation：-40°C~ 90°C/ <80% R.H.(no condensation)
Storage：-40°C~ 90°C/ <70%R.H.(no condensation)
For measurement of DC and AC current
Isolate primary circuit (high power) and secondary circuit (electronic low voltage)
Quick response
Low power consumption
Easy installation
Compact size and light weight
Insulating plastic case UL 94-V0
Specifications：
Offset (Residual) Voltage：< ±0.02V
Linearity of Rated Output Voltage：< ± 1%
Power Supply：±15V
Consumption Current：< ±20mA
Response Time：< 5 u sec
Thermal Drift of Output Voltage：< ±0.1% / of reading
Thermal Drift of Offset Voltage：< ±1mV / ℃
Hysteresis Error：±0.035V
Insulation Resistance：> 1000MΩ at 500V DC, between primary conductor aperture and output
Applied Voltage Test：2000V, 50 / 60Hz between aperture and terminals
Applications：
UPS systems
AC and DC servo systems
Speed controller of motors
NC tooling machines
Inverter-controlled welding machines
Controller of lifts
Controller of electrical vehicles
Process control devices
General and special purpose inverters
Other automatic control systems
Dimension / Weight：
90(L) x 29(W) x 65 (H)mm
Approx. 300g
Aperture size: 30.5 x 40.5mm
TEMP./Humidity：
Operation：-40°C~ 90°C/ <80% R.H.(no condensation)
Storage：-40°C~ 90°C/ <70%R.H.(no condensation)
