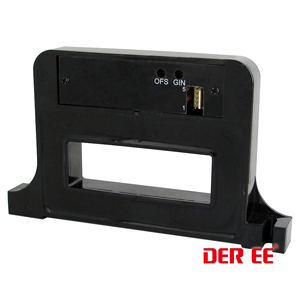

DHCT-M Hall Effect Sensor
| Item No.: | DHCT-M |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Superior linearity
Application to both AC and DC measurement
Compact size and light weight
Quick response
Providing absolute electrical isolation
Specifications：
Offset (Residual) Voltage：±0.05V
Linearity of Rated Output Voltage：± 1%
Power Supply：±15V
Consumption Current：20mA
Response Time：25 u sec
Thermal Drift of Output：TYP. ±0.08% / ℃, Max. ±0.1% / ℃
Thermal Drift of Zero Current Offset：±1mV / ℃
Hysteresis Error：±0.035V
Insulation Resistance：Over 500MΩ between aperture and terminals
Applied Voltage Test：2000V, 50 / 60Hz between aperture and terminals
Applications：
UPS systems
AC and DC servo systems
Speed controller of motors
NC tooling machines
Inverter-controlled welding machines
Controller of lifts
Controller of electrical vehicles
Process control devices
General and special purpose inverters
Other automatic control systems
Dimension / Weight：
170(L) x 102(W) x 20 (H)mm
Approx. 500g
Aperture size: 85 x 27mm
TEMP./Humidity：
Operation：-10°C~ 50°C/ <80% R.H.(no condensation)
Storage：-15°C~ 60°C/ <70%R.H.(no condensation)
