Defect Inspection System
Item No.: | 10-4,FAI-630 |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products
Scanning and Inspecting Module
Introduction

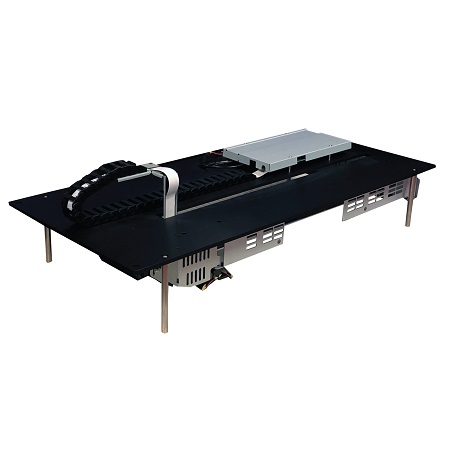

FAI-630 is a non-contact color linear image capturing module, which is suitable for using together with various conveyors in order to capture large-scale images precisely. With the resolution is up to 20 μm, the scanning area is up to 12 x 24 inches and the working distance is up to 2.5 cm, FAI-630 works best for FAI or identifying, comparing and inspecting images of PWBA before pasting solder. The working distance of the FAI-630 can be customized according to customers’ demands.
Features
Specifications
Scanning Area: 12” x 24”
Working Distance: 2.5 cm
Scanning Resolution: 20 μm
Image Sensor Type: Color linear CCD
Introduction
FAI-630 is a non-contact color linear image capturing module, which is suitable for using together with various conveyors in order to capture large-scale images precisely. With the resolution is up to 20 μm, the scanning area is up to 12 x 24 inches and the working distance is up to 2.5 cm, FAI-630 works best for FAI or identifying, comparing and inspecting images of PWBA before pasting solder. The working distance of the FAI-630 can be customized according to customers’ demands.
Features
- Non-contact image capturing technology ensures the completeness of scanned targets
- Using together with different angles of lights to capture images of scanned targets presents characteristics of different materials clearly
Specifications
Scanning Area: 12” x 24”
Working Distance: 2.5 cm
Scanning Resolution: 20 μm
Image Sensor Type: Color linear CCD
