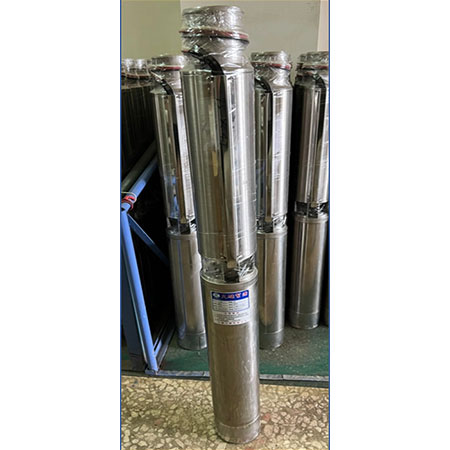

Deep Well Submersible Water Pump
| Item No.: | JF405 |
Supplier Details
Country: Taiwan
City: Yunlin County 653
Address: No. 7-6, Shalun, Kouhu Township
TEL: +886-5-7891071
Fax: +886-5-7895318
Online Showroom:
40 Products
4”3.5HP Deep well pump of dry multi-segment shaft-carrying device
It is often installed in the building for the water tower on the top floor, as well as groundwater, deep wells, streams, and agricultural water, for deep water extraction.
This deep well pump is relatively light and suitable for various industries. Since this motor is mostly used in shallow water sources, it will be used in beam wells, farmland, fish ponds, buildings and other places. It must be installed with electromagnetic overload switches and Electric leakage (circuit breaker) protection device, if there is sediment in the ground or there are debris and stones in the well, it is recommended to install a stainless steel mesh to prevent damage to the machine.
It is often installed in the building for the water tower on the top floor, as well as groundwater, deep wells, streams, and agricultural water, for deep water extraction.
- Material：304 stainless iron, iron, copper
- Horsepower - 3.5HP Caliber - 2"~2.5"
Head - 40m
Maximum water volume - 120 M3/min
Number of poles - 2P
Voltage：220V*60HZ single-phase, 220V*60HZ three-phase
Applicable deep well size - 4", 5"
If you need special specification pumps, you can order them in advance - Category：dry ( Zero pollution, eliminating oil - type pumps and high - cost water - type motors that will cause pollution, and the price is more affordable )
- Stable quality and fast delivery
- Origin：Taiwan
This deep well pump is relatively light and suitable for various industries. Since this motor is mostly used in shallow water sources, it will be used in beam wells, farmland, fish ponds, buildings and other places. It must be installed with electromagnetic overload switches and Electric leakage (circuit breaker) protection device, if there is sediment in the ground or there are debris and stones in the well, it is recommended to install a stainless steel mesh to prevent damage to the machine.
