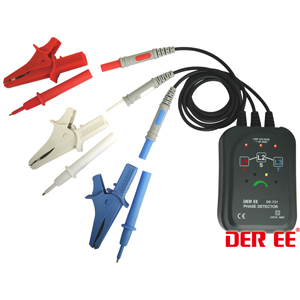

DE-721 Phase Sequence Tester
| Item No.: | DE-721 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Phase rotation direction indication
Open phase detection
Bright LED light suitable for both indoor and outdoor operation
Hands free operation with built in magnet
Alligator clip convertible test lead for different testing object application
Light and portable in leather gift box
Measurement Range：
3 phase check for AC 90V ~ AC 600V (Sine Wave)
Operation Frequency：45Hz ~ 70Hz
Test Time Limitation：AC 110V(continuous)，AC 220V(3 hours)，AC 480V(12 minutes)，AC 600V(3 minutes) (DE-721)
Power Supply：no battery required (DE-721)
Power Supply：AA 1.5V x 2 (DE-721B)
Safety Standard：IEC61010-1, IEC91010-2-030, IEC61010-031/A1, IEC61557-7, IEC61326-1 (DE-721B)
Color change LED phase direction indication
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation) (DE-721)
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation) (DE-721B)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
104(L)x74(W)x33(H)mm
Approx.170g (Including battery) (DE-721)
Approx.180g (Including battery) (DE-721B)
Accessories：
Alligator Clip (red, white, blue) x 3
Test leads + cap (red, white, blue) x 3
Instruction Manual x 1
Leather Gift Box x 1
1.5 AA battery x 2 (DE-721B)
Open phase detection
Bright LED light suitable for both indoor and outdoor operation
Hands free operation with built in magnet
Alligator clip convertible test lead for different testing object application
Light and portable in leather gift box
Measurement Range：
3 phase check for AC 90V ~ AC 600V (Sine Wave)
Operation Frequency：45Hz ~ 70Hz
Test Time Limitation：AC 110V(continuous)，AC 220V(3 hours)，AC 480V(12 minutes)，AC 600V(3 minutes) (DE-721)
Power Supply：no battery required (DE-721)
Power Supply：AA 1.5V x 2 (DE-721B)
Safety Standard：IEC61010-1, IEC91010-2-030, IEC61010-031/A1, IEC61557-7, IEC61326-1 (DE-721B)
Color change LED phase direction indication
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation) (DE-721)
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation) (DE-721B)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
104(L)x74(W)x33(H)mm
Approx.170g (Including battery) (DE-721)
Approx.180g (Including battery) (DE-721B)
Accessories：
Alligator Clip (red, white, blue) x 3
Test leads + cap (red, white, blue) x 3
Instruction Manual x 1
Leather Gift Box x 1
1.5 AA battery x 2 (DE-721B)
