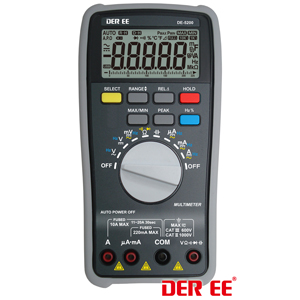

DE-5200 Digital multimeter
| Item No.: | DE-5200 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
True RMS (DE-5202/5203)
Bar Graph
Peak-max. & Peak-min Hold
Max./Min Hold
Data Hold
Delay Hold
Backlight (DE-5202/5203)
Auto Range & Manual Range
Auto Power Off Selection
Relative Check
AC 3dB Bandwidth LPF
HCF Signal Detection
Temperature Measurement (DE-5203)
Specifications：
LCD Display：22000 Counts (main) & bar graph 46 segments
Sampling Rate：Approx. 2 times per second
Range：Automatic & manual
Overload：”OL” Display On LCD
Low Battery： Display on LCD
Auto Power Off：In 15 Minutes Approx.
Battery：Standard 1.5V x2
Safety standard：IEC 61010-1 CAT III 600V ,CAT.II 1000V
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
181(L)x91(W)x57(H)mm
Approx.400g (Excluding battery)
Accessories：
Battery AAA 1.5V x 2
Instruction Manual x 1
Test Lead (red + black) x 1
Optional Accessories：(DE-5203)
Thermocouple adaptor (NR-38)
K type thermocouple (NR-38W)
Bar Graph
Peak-max. & Peak-min Hold
Max./Min Hold
Data Hold
Delay Hold
Backlight (DE-5202/5203)
Auto Range & Manual Range
Auto Power Off Selection
Relative Check
AC 3dB Bandwidth LPF
HCF Signal Detection
Temperature Measurement (DE-5203)
Specifications：
LCD Display：22000 Counts (main) & bar graph 46 segments
Sampling Rate：Approx. 2 times per second
Range：Automatic & manual
Overload：”OL” Display On LCD
Low Battery： Display on LCD
Auto Power Off：In 15 Minutes Approx.
Battery：Standard 1.5V x2
Safety standard：IEC 61010-1 CAT III 600V ,CAT.II 1000V
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
181(L)x91(W)x57(H)mm
Approx.400g (Excluding battery)
Accessories：
Battery AAA 1.5V x 2
Instruction Manual x 1
Test Lead (red + black) x 1
Optional Accessories：(DE-5203)
Thermocouple adaptor (NR-38)
K type thermocouple (NR-38W)
