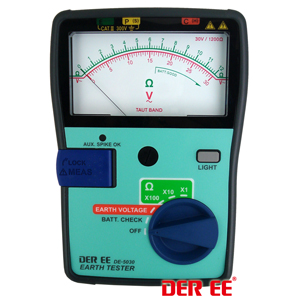

DE-5030 Analog Earth/Ground Resistance Tester
| Item No.: | DE-5030 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Multiple range for selection (x 1, x
10, x 100)
Max. resistance 1200Ω
Overload protection
Measurement option：precise 3-pole or simple 2-ploe
TAUT BAND movement
Lighting function for reading at dim spots (turn off in 40 sec. automatically)
Low battery indication
Earth resistance range：0~12Ω / 0~120Ω / 0~1200Ω
Normal operation conditions：Battery voltage：in range of “BATT.GOOD”
Earth voltage measurement：max. AC 30V
Output current：3mA
Response time：within 1 sec.
Insulation resistance：min. 100MΩ / DC1000V between input terminals and case
Withstand voltage：AC3700V (50 / 60Hz) for 1 min. between input terminals and case
Battery Check
Battery：1.5V x 4
Safety standard：IEC 61010-1 CAT.III 300V IEC 61557, IEC61010-031
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<85% R.H.(no condensation)
Storage：-20°C~ 60°C(-4℉~140℉)/<75%R.H.(no condensation)
Dimension & Weight：
162(L)x112(W)x50(H)mm
Approx.400g (Excluding battery)
Accessories：
Test lead (red)(DE-TL66)20M x 1
Test lead (yellow)(DE-TL66)10M x 1
Test lead (green)(DE-TL66)5M x 1
T type aux. spike (DE-TL70) x 2
Simplified test lead (red) (DE-TL56) x 1
Simplified test lead (green) (DE-TL65) x 1
Test probe-red/black (DE-TL55) x 1 set
Alligator clip-red/black (DE-TL73D) x 1 set
Instruction manual x 1
Alkaline battery AA 1.5V (LR6) x 4
Hard tool case x 1
Max. resistance 1200Ω
Overload protection
Measurement option：precise 3-pole or simple 2-ploe
TAUT BAND movement
Lighting function for reading at dim spots (turn off in 40 sec. automatically)
Low battery indication
Earth resistance range：0~12Ω / 0~120Ω / 0~1200Ω
Normal operation conditions：Battery voltage：in range of “BATT.GOOD”
Earth voltage measurement：max. AC 30V
Output current：3mA
Response time：within 1 sec.
Insulation resistance：min. 100MΩ / DC1000V between input terminals and case
Withstand voltage：AC3700V (50 / 60Hz) for 1 min. between input terminals and case
Battery Check
Battery：1.5V x 4
Safety standard：IEC 61010-1 CAT.III 300V IEC 61557, IEC61010-031
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<85% R.H.(no condensation)
Storage：-20°C~ 60°C(-4℉~140℉)/<75%R.H.(no condensation)
Dimension & Weight：
162(L)x112(W)x50(H)mm
Approx.400g (Excluding battery)
Accessories：
Test lead (red)(DE-TL66)20M x 1
Test lead (yellow)(DE-TL66)10M x 1
Test lead (green)(DE-TL66)5M x 1
T type aux. spike (DE-TL70) x 2
Simplified test lead (red) (DE-TL56) x 1
Simplified test lead (green) (DE-TL65) x 1
Test probe-red/black (DE-TL55) x 1 set
Alligator clip-red/black (DE-TL73D) x 1 set
Instruction manual x 1
Alkaline battery AA 1.5V (LR6) x 4
Hard tool case x 1
