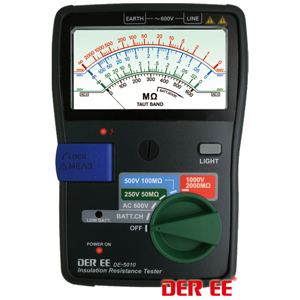

DE-5010 Insulation Resistance Tester
| Item No.: | DE-5010 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Multiple ranges for selection
Auto discharge of circuit
Live circuit warning
Lighting function for reading at spots lighting is dim
AC voltage measurement
Low battery indication
Taut band movement
Normal operation conditions：Battery voltage：in range of “BATT.GOOD”
Response time：within 3 sec. (It may time in measuring a capacitance loading)
Insulation resistance：≧100MΩ / DC1000V between test leads and enclosure.
Withstand voltage：AC5500V (50 / 60Hz) for 1 min. between test leads and enclosure.
Battery：1.5V x 4
Safety standard：IEC 61010-1 CAT.III 600V IEC 61557
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<85% R.H.(no condensation)
Storage：-20°C~ 60°C(-4℉~140℉)/<75%R.H.(no condensation)
Dimension & Weight：
162(L)x112(W)x50(H)mm
Approx.400g (Excluding battery)
Accessories：
LINE test lead x 1
EARTH test lead plug x 1
Convertible test lead x 1
Alligator clip x 1
Carrying case x 1
AA Alkaline battery 1.5V x 4
Instruction Manual x 1
Guard Test Lead x 1 (DE-5010)
