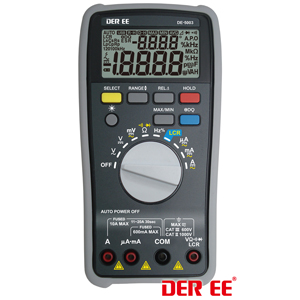

DE-5003 Digital Multimeter +LCR
| Item No.: | DE-5003 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
True RMS (DE-5004)
Integrate Multimeter & L.C.R Function In One Meter
Data Hold
Dual Display
Max./Min Hold
Backlight
Auto Range & Manual Range
Auto Power Off Selection
Specifications：
LCD Display：6600 Counts (main)
2000 Counts (sub)
Sampling Rate：3 Times/Sec. (DMM mode)
1 Time/Sec. (LCR mode)
Range：Automatic & Manual
Overload：”OL” Display On LCD
Low Battery： Display On LCD
LCR Measurement (auto range)：
*Rs, Rp, Cs, Cp, Ls, Lp, phase angle, Dissipation factor, Quality factor
*Auto select series or parallel test mode
*Auto select 100Hz/1kHz/10kHz test frequency, 0.5V rms approx.
*Calibration
Auto Power Off：In 15 Minutes Approx.
Battery：1.5V battery x 2
Safety standard：IEC 61010-1 CAT III 600V , IEC 61010-1 CAT.II 1000V
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
181(L)x92(W)x57(H)mm
Approx.400g (excluding battery)
Accessories：
1.5V AA Battery x 2
Instruction Manual x 1
Test Lead (black + red) x 1
Test Alligator Clip (red + black) x 1
