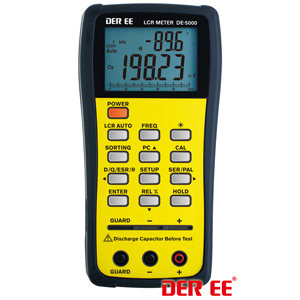

DE-5000 LCR Meter
| Item No.: | DE-5000 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Auto L/C/R
check
100 / 120 / 1K / 10K / 100K Hz test frequency
20,000 / 2,000 counts display
Backlight
Ls/ Lp/ Cs/ Cp/ Rs/ Rp/ DCR with D/Q/θ/ESR measurement
Relative mode
Series / Parallel modes
Components sorting function
*Selectable tolerance ±0.25%、±0.5%、± 1%、±2%、±5%、±10%、±20%、-20%+80%
Low battery indication
4-wire Kelvin measurement
Specifications：
LCD Display：Dual 19999/ 1999 display
Measuring rate：1.2 / second, nominal
Range：Automatic
Overload：”OL” Display On LCD
Low Battery： Display On LCD
Auto Power Off：In 5 Minutes Approx.
Battery：9V x1
Safety standard：IEC 61326-1 & IEC 61326-2-2
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<70% R.H.(no condensation)
Storage：-20°C~ 60°C(-4℉~140℉)/<80%R.H.(no condensation)
Dimension & Weight：
188(L)x95(W)x52(H)mm
Approx.350g (excluding battery)
Accessories：
Alligator test lead case (TL-21) x 1
AC/DC Adaptor x 1
Guard Line (TL-23) x 1
DC 9V Battery x1
Instruction Manual x1
Carry case x 1
100 / 120 / 1K / 10K / 100K Hz test frequency
20,000 / 2,000 counts display
Backlight
Ls/ Lp/ Cs/ Cp/ Rs/ Rp/ DCR with D/Q/θ/ESR measurement
Relative mode
Series / Parallel modes
Components sorting function
*Selectable tolerance ±0.25%、±0.5%、± 1%、±2%、±5%、±10%、±20%、-20%+80%
Low battery indication
4-wire Kelvin measurement
Specifications：
LCD Display：Dual 19999/ 1999 display
Measuring rate：1.2 / second, nominal
Range：Automatic
Overload：”OL” Display On LCD
Low Battery： Display On LCD
Auto Power Off：In 5 Minutes Approx.
Battery：9V x1
Safety standard：IEC 61326-1 & IEC 61326-2-2
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<70% R.H.(no condensation)
Storage：-20°C~ 60°C(-4℉~140℉)/<80%R.H.(no condensation)
Dimension & Weight：
188(L)x95(W)x52(H)mm
Approx.350g (excluding battery)
Accessories：
Alligator test lead case (TL-21) x 1
AC/DC Adaptor x 1
Guard Line (TL-23) x 1
DC 9V Battery x1
Instruction Manual x1
Carry case x 1
