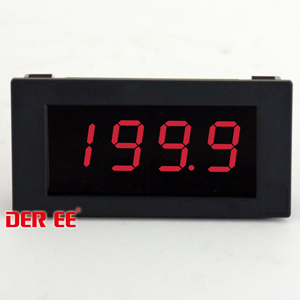

DE-367SE LED Panel Meter
| Item No.: | DE-367SE |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Display：LED 3 ½ (1999)
digits, 0.56" (14.2mm) height LED RED
Operating Supply Voltage：DC 5V ±10% or DC 9V ±20%
Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
Conversion Rate：Approx. 2.5 times / second
Negative Polarity：“-” symbol display by user’s option
Over Range Indication：“1” or “ -1” symbol displayed
Power Current：DC 5V or DC 9V < DC 60mA (typical)
DCV Input Resistance：≒10MΩ
DCmA Input Resistance：Typical 1Ω
<18℃,> 28℃ add 0.15 x (specified accuracy) / ℃
Temp./ Humidity ：
Operating：-10~55°C / Below 80% R.H. (No Condensation)
Storage： -15~60°C / Below 70% R.H. (No Condensation)
Dimension：72x36x18.7mm
Panel Cutout Size：70x34mm
Operating Supply Voltage：DC 5V ±10% or DC 9V ±20%
Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
Conversion Rate：Approx. 2.5 times / second
Negative Polarity：“-” symbol display by user’s option
Over Range Indication：“1” or “ -1” symbol displayed
Power Current：DC 5V or DC 9V < DC 60mA (typical)
DCV Input Resistance：≒10MΩ
DCmA Input Resistance：Typical 1Ω
<18℃,> 28℃ add 0.15 x (specified accuracy) / ℃
Temp./ Humidity ：
Operating：-10~55°C / Below 80% R.H. (No Condensation)
Storage： -15~60°C / Below 70% R.H. (No Condensation)
Dimension：72x36x18.7mm
Panel Cutout Size：70x34mm
