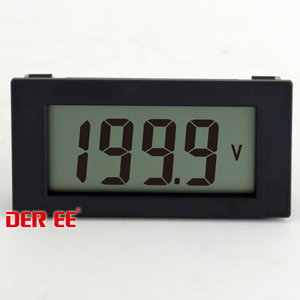

DE-367SC LCD Panel Meter
| Item No.: | DE-367SC |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Display：LCD 3 ½ (1999) digits,
0.73" (18.5mm) height LCD
Operating Supply Voltage：DC 5V~DC 9V ±10%
Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
Conversion Rate：Approx. 3 times / second
Negative Polarity：“-” symbol display automatically
Over Range Indication：“OL” symbol display LCD
Power Current：Approx. DC 1.6mA (typical)
DCV Input Resistance：≒10MΩ
DCmA Input Resistance：Typical 1Ω
<18℃,> 28℃ add 0.15 x (specified accuracy) / ℃
Temp./ Humidity：
Operating：-10~55°C / Below 80% R.H. (No Condensation)
Storage： -15~60°C / Below 70% R.H. (No Condensation)
Dimension：72x36x18.7mm
Panel Cutout Size：70x34mm
Operating Supply Voltage：DC 5V~DC 9V ±10%
Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
Conversion Rate：Approx. 3 times / second
Negative Polarity：“-” symbol display automatically
Over Range Indication：“OL” symbol display LCD
Power Current：Approx. DC 1.6mA (typical)
DCV Input Resistance：≒10MΩ
DCmA Input Resistance：Typical 1Ω
<18℃,> 28℃ add 0.15 x (specified accuracy) / ℃
Temp./ Humidity：
Operating：-10~55°C / Below 80% R.H. (No Condensation)
Storage： -15~60°C / Below 70% R.H. (No Condensation)
Dimension：72x36x18.7mm
Panel Cutout Size：70x34mm
