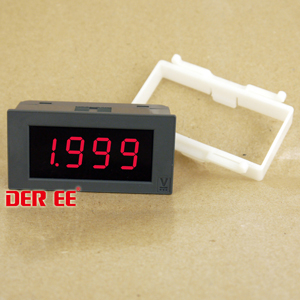

DE-3672E LED Panel Meter
| Item No.: | DE-3672E |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
DE-3672ED LED DC Voltmeter / Ammeter
DE-3672EA LED AC Voltmeter / Ammeter
Specifications：
Display：LED 3 ½ (1999) digits, 0.56" (14.2mm) height LED RED
Operating Supply Voltage：DC 5V ±10% or DC 9V ±20%
Accuracy：DCV：0.2% rdg+2d
ACV：0.3% rdg+2d (50~60Hz)
Conversion Rate：Approx. 2.5 times / second
Negative Polarity：“-” symbol display automatically
Over Range Indication：“1” or “ -1” symbol displayed
Power Dissipation：approx. 0.3~0.5W
Input Resistance：≧10MΩ
Temp./ Humidity ：
Operating：-10~55°C / Below 80% R.H. (No Condensation)
Storage： -20~65°C / Below 70% R.H. (No Condensation)
Dimension：
Dimension：72x36x26.5mm
Panel Cutout Size：70x34mm
DE-3672EA LED AC Voltmeter / Ammeter
Specifications：
Display：LED 3 ½ (1999) digits, 0.56" (14.2mm) height LED RED
Operating Supply Voltage：DC 5V ±10% or DC 9V ±20%
Accuracy：DCV：0.2% rdg+2d
ACV：0.3% rdg+2d (50~60Hz)
Conversion Rate：Approx. 2.5 times / second
Negative Polarity：“-” symbol display automatically
Over Range Indication：“1” or “ -1” symbol displayed
Power Dissipation：approx. 0.3~0.5W
Input Resistance：≧10MΩ
Temp./ Humidity ：
Operating：-10~55°C / Below 80% R.H. (No Condensation)
Storage： -20~65°C / Below 70% R.H. (No Condensation)
Dimension：
Dimension：72x36x26.5mm
Panel Cutout Size：70x34mm
